Chicken Feed Pellet Mill
The chicken feed pellet mill is a key application of RICHI ring die pelletizers. Customizable for all types of poultry feed including broilers, laying hens and young chicks, it excels in conditioning and fully gelatinizing powdered raw materials like corn, soybean meal, wheat bran, fish meal and feed premixes. Users may freely select pellet sizes and flexibly adjust production output, making it a highly recommended equipment option.
According to different customer needs, RICHI designs different equipment models.

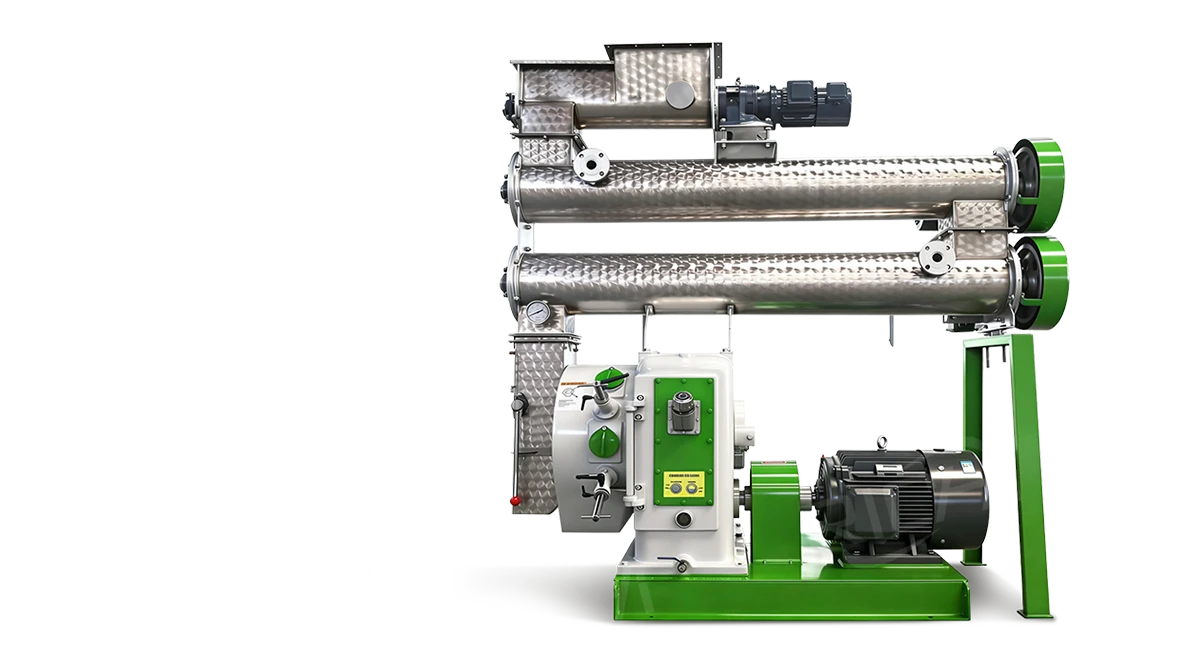

Chicken Feed Pellet Machine
RICHI’s chicken feed pelletizer is professional equipment that processes raw powders including corn, soybean meal, wheat bran, fish meal and premixes into well-cooked pellets with a diameter of 2–6 mm.
Chicken feed production
With hourly output spanning 1 to 40 tons, this chicken feed pellet mill fits chicken farms, layer cooperatives, broiler bases, medium & small feed factories and household farms. It works as a single unit or part of a full-auto production line, ranking us a top brand in poultry feed manufacturing.
Output:1.0-40.0 T/H
RICHI Crafted, Fully Trusted.

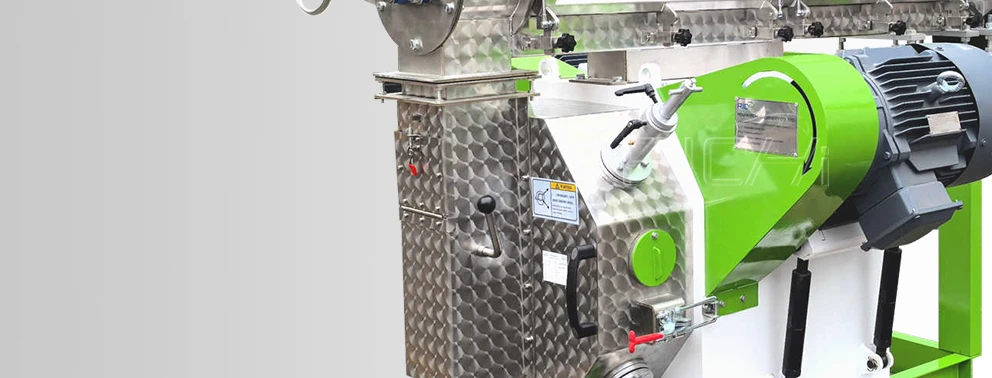

Equipment Structure
All structural components are produced to industrial standards, suitable for long-term continuous production.

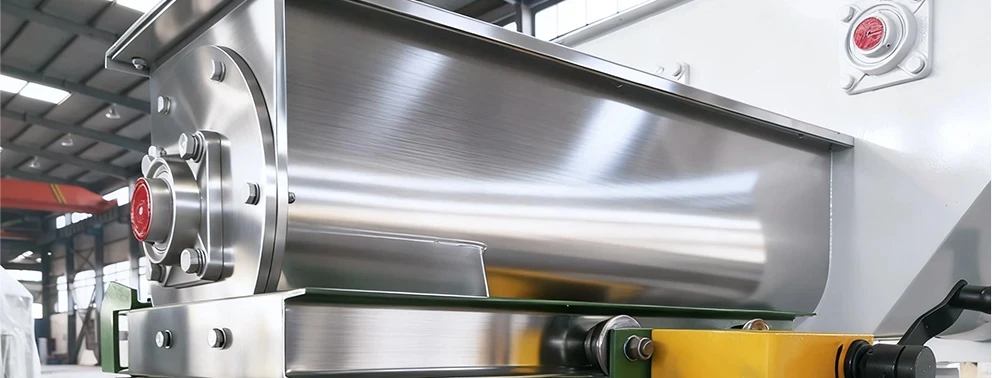

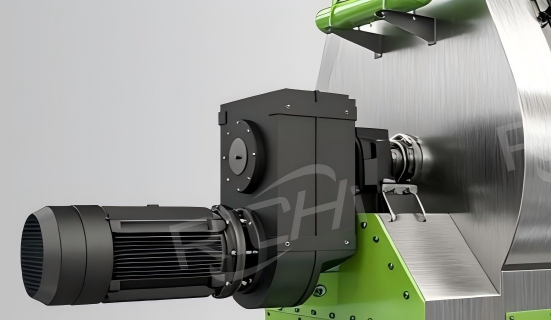

Variable-Frequency Feeding System
Fitted with a VFD variable-frequency screw feeder and an enlarged feed inlet, our chicken feed pellet making machine effectively avoids material bridging and blockages. Optimized for fluffy materials like hay and straw, its screw pitch adapts to raw material moisture and thickness to auto-adjust feeding speed.
Consistent steady feeding eliminates feed flow instability that impairs pellet forming, sustaining smooth pelleting. It works exceptionally well for hard-to-process high-fiber feeds such as grass and straw powder with variable moisture levels.

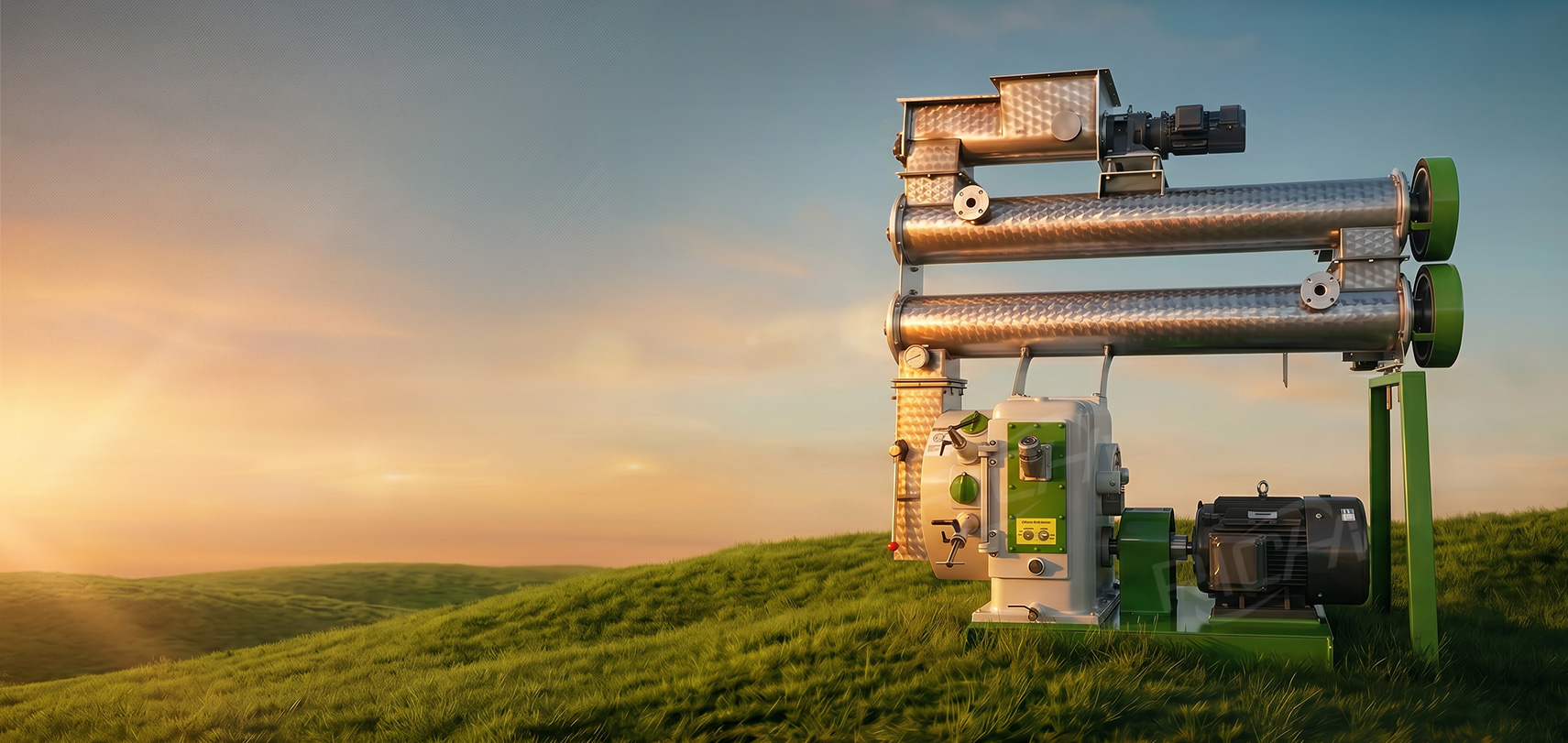

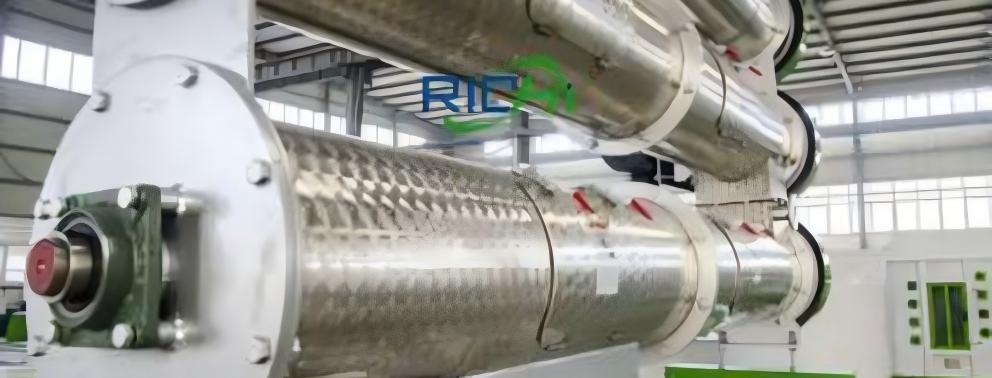

Conditioning System
This chicken feed pellet mill supports custom configuration of 1–3 layers of 304 stainless steel conditioning vessels equipped with optimally angled stirring blades.
Saturated steam at 160–180°C can be injected to maintain a conditioning temperature of 75–90°C, with retention time tunable between 30 and 120 seconds.
The pellet machine for chicken feed is pre-reserved with a connection port for adding liquid additives.

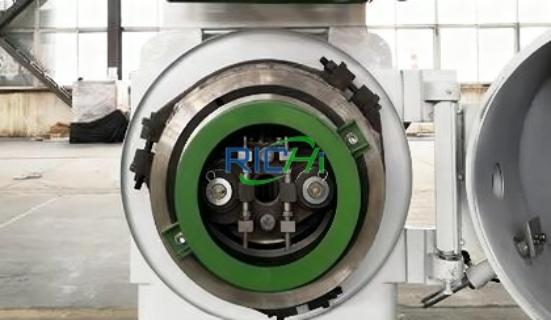

Pelleting System
Constructed with an HT250 cast iron main body, this chicken pellet making machine adopts alloy steel ring die and double pressing rollers as its core components.
The ring die is manufactured via multiple precision machining procedures, with customizable hole diameters ranging from 1.5 mm to 12 mm.
Symmetrically installed rollers support precise clearance adjustment to guarantee even extrusion during pelleting.

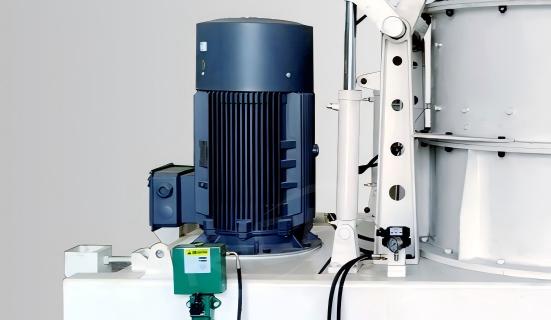

Transmission System
This chicken feed pellet maker features precision hard-tooth gear drive, paired with authentic Siemens motors and imported SKF bearings.
The direct coupling between motor and gearbox achieves outstanding transmission efficiency, alongside a built-in overload protection system for operational safety.
PLC Electrical Control Cabinet
This chicken feed pellet machine uses precision hard tooth surface gear transmission, fitted with genuine Siemens motors and imported SKF bearings.
Direct motor-to-gearbox connection delivers superior transmission efficiency, while a built-in overload protection mechanism prevents equipment damage.
According to different customer needs, RICHI designs different equipment models.
Chicken Feed Pellet Making Machine
The SZLH series is RICHI’s flagship ring die pellet mill line, fully meeting production needs from small farms to large feed factories.
Various Capacities of RICHI Feed Pellet Mill For Sale
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main motor power ( kW ) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder motor power ( kW ) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner power ( kW ) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter（mm） | 2~12 | |||||||
| Capacity（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
Videos Of Feed Pellet Mills
RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why Choose RICHI？
Our story originates from the Central Plains, where we started with one simple mission: to build reliable, premium equipment.
SZLH Series Feed Pellet Mills
The SZLH series is one of the core product categories of RICHI pellet mills. It covers various production capacities and is widely used.
RICHI Crafted, Fully Trusted.
Core Advantages
The chicken pellet making machine possesses a range of core advantages for production applications.
RICHI Crafted, Fully Trusted.
Application Scenario
The chicken feed pellet machine grants it extensive applicability. Listed below are several typical application scenarios for your reference.
Large-scale Broiler Farms
Equipped with a cattle feed pelletizer to produce self-used pellets for lactating cows, dry cows, and calves, local straw and forage are consumed on-site, significantly reducing the cost of purchased feed, allowing for independent control of feed formulas and raw material safety, and optimizing costs.
Layer Farming Bases/Cooperatives
Suitable for production lines with an output of 3 to 10 tons per hour, it specializes in producing pellets for layers during the laying period, brooding period, and molting period. The pellets are uniform and easy to consume, which can increase the egg production rate of layers by 3 to 5%, improve eggshell hardness, and reduce the rate of broken eggs. When cooperatives uniformly configure production lines, it can achieve standardized feed supply, ensure consistent feed quality for all farmers, and reduce overall operational costs.
Medium and Small-sized Feed Mills
Suitable for production lines with an output of 10 to 40 tons per hour, it mainly focuses on commercial chicken feed production, capable of batch-producing various types of feed such as chick feed, broiler feed, and layer feed. The pellets have a uniform appearance, stable cooking degree, are easy to store and transport, and can meet the bulk purchasing needs of surrounding farms, helping feed mills enhance market competitiveness and expand customer groups.
Supporting Production Line
As the core forming equipment of the entire chicken feed production line, the RICHI chicken feed pelletizer follows a unified core processing procedure regardless of production capacity.
Crushing
Screened raw materials are ground into qualified particle size via water drop hammer mills, vertical grinders and small crushing equipment.
Mixing
Crushed materials are fully blended with multi-type mixers (single-shaft double-layer blade mixers, twin-shaft blade mixers, etc.) per production requirements.
Pelleting
Raw materials are conveyed by variable-frequency feeders to conditioners for steam humidification and maturation, then pressed into pellets in the pelleting chamber.
Cooling

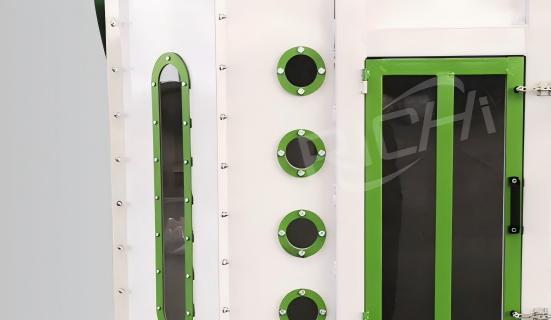

Fresh pellets are hot and soft; a counterflow cooler reduces their temperature and hardness increases for safe storage.
Screening

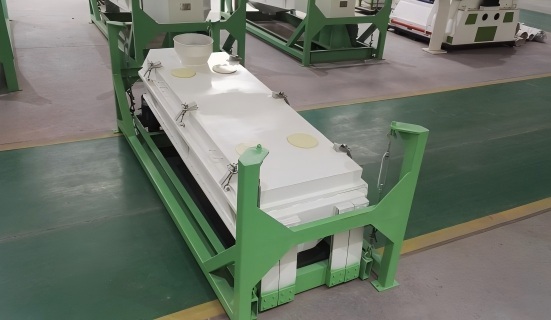

Fines and unqualified pellets are separated and returned for re-processing, ensuring consistent quality.
Packing

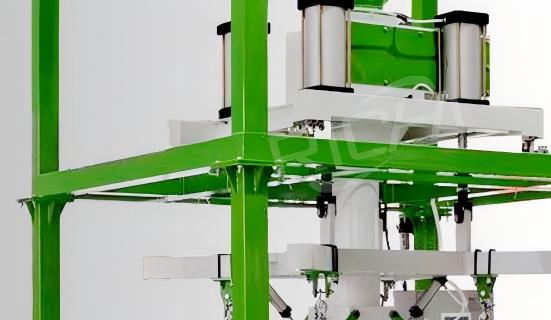

Finished pellets are weighed and packed using automatic packing machines for storage or sale.
RICHI Crafted, Fully Trusted.
Success Stories

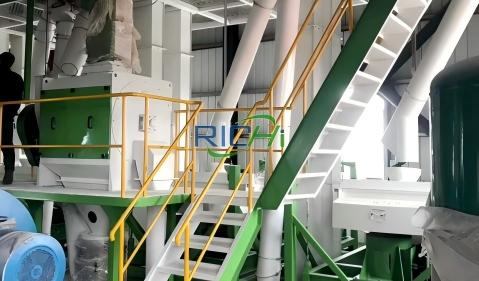

Feed Industry Zone, Bangkok, Thailand
Commercial Poultry Feed Factory
- Scale: Medium-sized feed factory with a daily production capacity of 100 tons
- Capacity: 5 tons per hour dedicated chicken feed production line
- Main equipment: SZLH320 Pelletizer
- Raw materials: Corn, soybean meal, palm meal, fish meal
- Effects: Adapted to tropical climate, pellets do not become damp or moldy; Supplies over 30 surrounding farms in Bangkok, with high repeat purchase rate
Tashkent Region, Uzbekistan

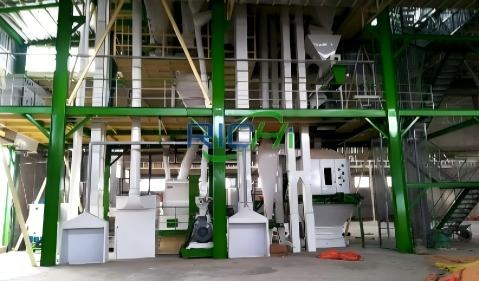

Large-scale Poultry Farm
- Scale: Mixed breeding of 300,000 broilers and layers
- Capacity: 6 tons per hour chicken feed production line
- Main equipment: SZLH350 Pelletizer + Steam Conditioning
- Raw materials: Local corn, soybean meal, wheat bran
- Effects: Solved the local shortage of high-quality feed; Improved the health of the chicken flock and reduced mortality rate

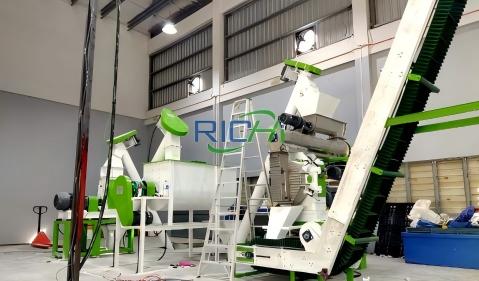

Suburban Farming Area, Lagos, Nigeria
Cluster of Small-scale Poultry Farmers
- Scale: 100,000 – 500,000 chickens among scattered farmers
- Capacity: 1 – 3 tons per hour small-scale chicken feed pelletizer (SZLH250)
- Features: Low investment, simple operation, voltage compatible with local standards
- Effects: Farmers produce their own feed, reducing costs by over 30%; Good palatability of pellets, resulting in faster chicken growth and higher egg production
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
What types of chicken feed can this chicken feed pelletizer produce? Is it suitable for chickens at different growth stages?
The RICHI ring die feed pelletizer can produce various types of chicken feed, including starter feed, grower feed, layer feed (laying period, brooding period, molting period), breeder feed, etc. The pellet size can be customized: 2mm for chicks, 3-4mm for layers and broilers, and 5-6mm for medium and large chickens. It can perfectly meet the feeding and nutritional needs of chickens at different growth stages.
How long can the produced pellet feed be stored? Will it easily mold or break?
After the finished pellets are processed by the cooler, the moisture content can be controlled at ≤12%, and they have undergone high-temperature cooking and sterilization. Under normal moisture-proof storage conditions, they can be stably stored for a long time without easily molding. The equipment uses alloy steel ring dies and double rollers for extrusion molding, resulting in high pellet formation rate, high density, and smooth surface. They are less likely to break during transportation and storage, with a low powdering rate, reducing feed waste.
Do I need to pair it with other equipment when producing pellets? What are the core equipment of the entire production line?
It can be used as a single machine (suitable for small-scale self-use) or as part of a complete production line (suitable for large-scale production). The core equipment of the entire production line includes: cleaning and decontamination equipment, crushers, batching and mixing equipment, pelletizers, coolers, screening equipment, and packaging equipment. Among them, the pelletizer is the core forming equipment, directly determining the quality of the pellets.
