Chicken Manure Pellet Machine
The chicken manure pellet machine is a common application of RICHI’s organic fertilizer granulating equipment, serving as a highly effective tool for scenarios such as the resource utilization of livestock and poultry waste and commercial organic fertilizer production lines. Characterized by high viscosity and high organic matter content, the fermented chicken manure is fed into the granulator, where it is extruded into cylindrical organic fertilizer granules.
High-quality equipment produces high-quality pellets.
Chicken Manure Pellet Machine for Sale
Depending on your requirements, auxiliary materials such as straw or rice husks can be incorporated into the mix.

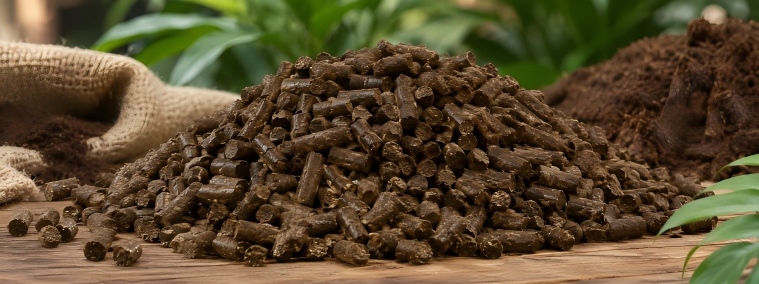

Finished chicken manure pellets
Fuel pellets made by the fuel pellet mill feature:
- Pellet diameter of finished products is adjustable within 4‑12 mm.
- The final pellets feature high density, moderate hardness and low pulverization rate.
- Nutrients remain well‑retained with minimal loss of nitrogen, phosphorus and potassium.
- Good pellet fluidity enables bulk transportation and mechanical spreading.
- After fermentation and pelleting, parasite eggs and harmful bacteria are eliminated, and odour is greatly reduced. The output can be directly applied as organic fertilizer for fruits, vegetables, farmland and orchards, meeting commercial organic fertilizer standards.
Output:1.0-26.0 T/H
Finished Pellet Diameter:4.0-12.0 mm
RICHI Crafted, Fully Trusted.
Equipment Structure of Chicken Manure Pellet Machine

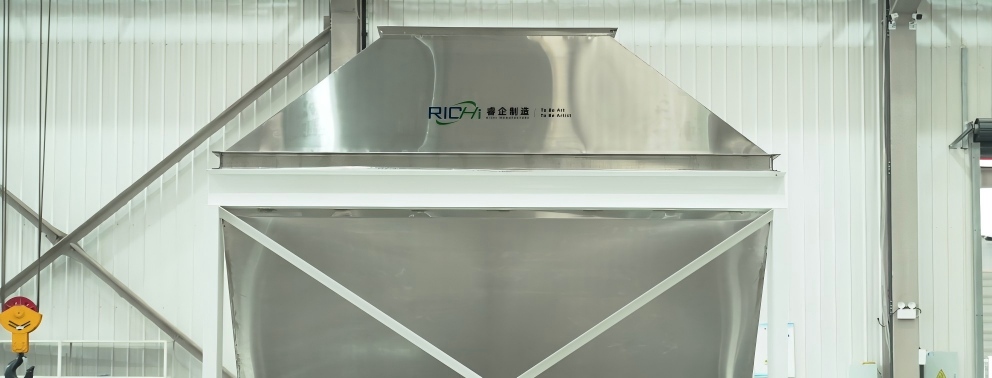

Variable Frequency Feeding System
The hopper is equipped with an arch‑breaking device to prevent chicken manure from caking and bridging. The variable‑speed screw adjusts feeding rate according to material properties, delivering sticky manure steadily into the machine and reducing block‑related shutdowns.

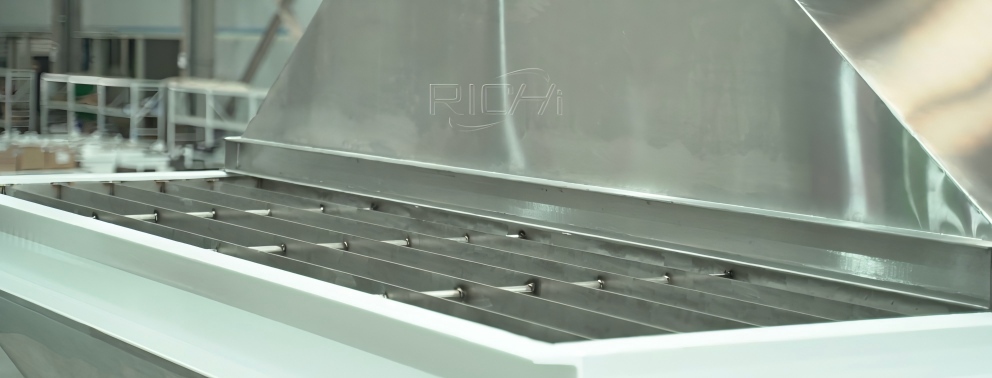

Forced Feeding Mechanism
Chicken manure has poor flowability due to high viscosity. This component actively pushes material into the pelleting chamber to maintain stable extrusion pressure and avoid uneven feeding or material slipping.

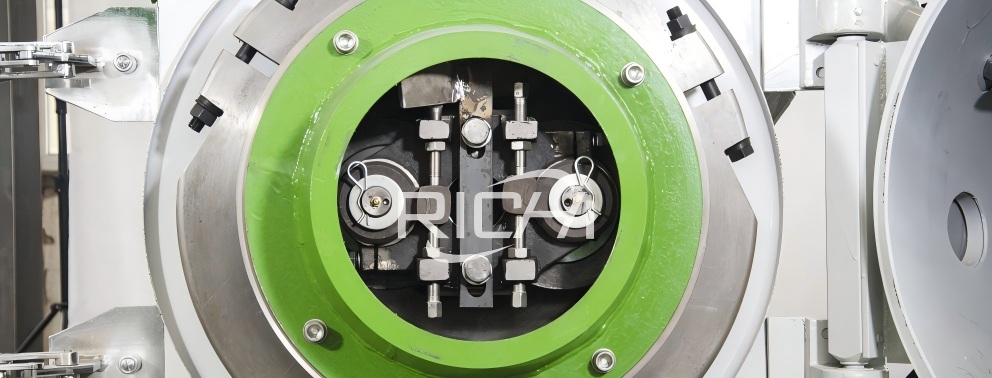

Anti‑corrosion Pelleting Assembly
Ring die and rollers adopt special anti‑corrosion and wear‑resistant treatment against corrosive organic manure. Pellet size can be changed by replacing ring dies with different bore sizes. The externally adjustable cutter controls finished pellet length.

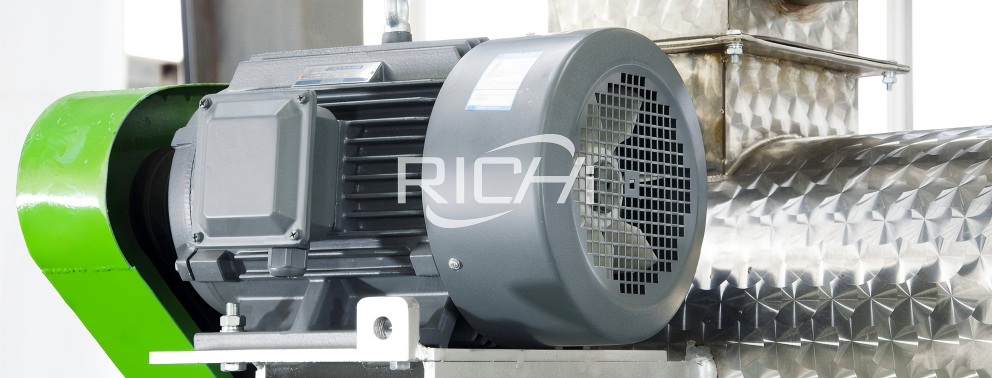

Heavy‑duty Drive Unit
High‑power motor, heavy‑load bearings and reinforced shock‑absorbing base. Designed for the high load of manure pelleting, it supports long‑time continuous operation and lowers machine vibration.

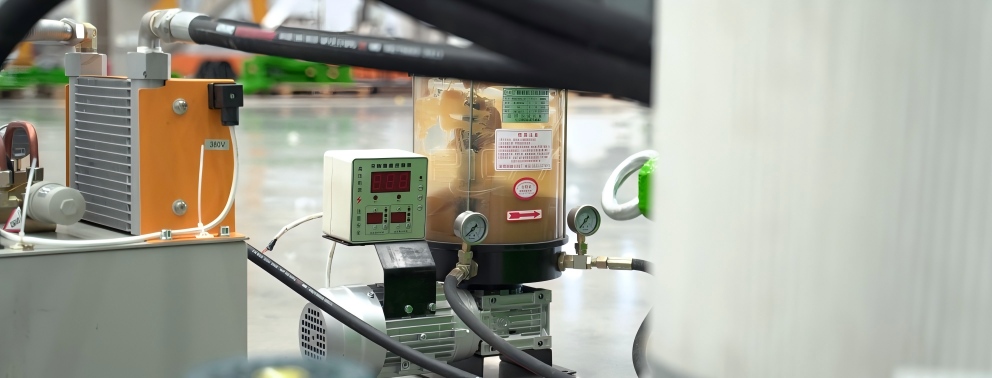

Safety Protection Assembly
Built‑in overload protection. If hard impurities such as stones enter the chamber, the machine triggers automatic shutdown to protect costly wear parts like ring die and rollers.
According to different customer needs, RICHI designs different equipment models.
Chicken Manure Pelletizer
Technical parameters of biomass pellets machine for fertilizer.
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main motor power ( kW ) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter（mm） | 4~12 | ||||||
| Capacity（T/H） | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
On-site Running Display of Chicken Manure Pelletizer
RICHI features spacious factory premises, a tidy office environment and complete production lines.

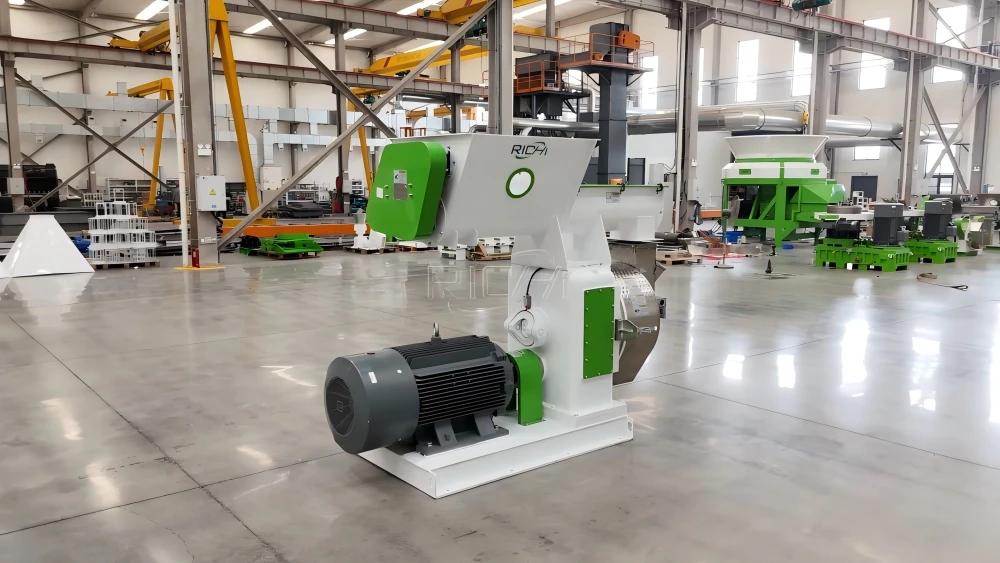

Organic Fertilizer Pellet Machine
RICHI’s new factory has produced a new, high-quality granulator.
How an Organic Fertilizer Granulator Operates?
RICHI’s equipment is capable of producing high-quality and efficient organic fertilizer pellets.
Core Advantages of Chicken Manure Pellets Machine
The chicken manure pellets machine possess a range of core advantages for production applications.
Our projects span the globe.
Success Stories
RICHI has accumulated numerous successful project cases through our dedicated full-service support.
Bulgaria

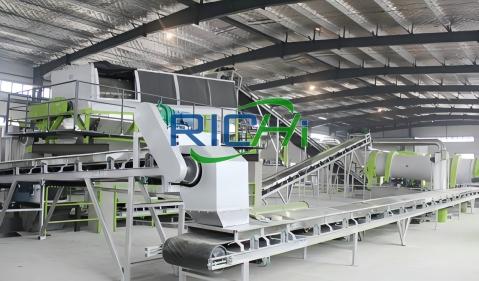

6‑8 T/H Chicken Manure Fertilizer Project, Bulgaria
- Capacity: 6‑8 T/H
- Raw materials: fermented chicken manure mixed with straw & sawdust
- Pellet size: 6 mm
- Model FZLH420
- Pellets are supplied to local organic farms and greatly improve logistics & spreading efficiency.
Vietnam

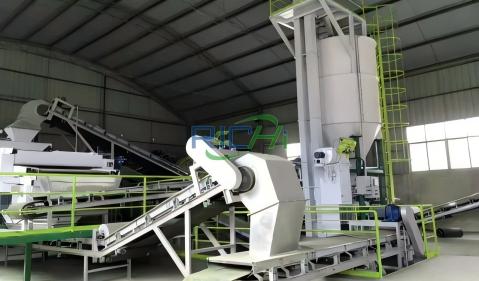

5 T/H Chicken Manure Pellet Production Line, Vietnam
- Capacity: 5 T/H
- Raw materials: chicken manure blended with rice husk & trace additives
- Pellet size: 3‑6 mm
- Integrated dust & odour control to meet local environmental rules. Products for rice paddies, orchards and vegetable fields, turning farm waste into commercial goods.
Kazakhstan
9‑12 T/H Chicken Manure Pelleting Project, Kazakhstan
- Capacity:9‑12 T/H
- Raw materials: chicken manure + wheat straw + sunflower husk
- Pellet size: 8 mm
- Model FZLH520
- Pellets improve local soil quality and release nutrients slowly for large‑scale farming operations.
Supporting Production Line
RICHI’s complete equipment lineup protects and stabilizes your production line.
Raw‑material Pretreatment & Aerobic Fermentation
Mix fresh chicken manure with straw, rice husk to adjust carbon‑nitrogen ratio and moisture. Solid‑liquid separator is optional for over‑wet manure. Add microbial agents, then adopt compost turner for high‑temperature aerobic fermentation. Pathogens and parasite eggs are eliminated during composting and curing to obtain well‑decomposed chicken manure.
Crushing & Batching‑mixing
Crush caked compost with semi‑wet material crusher. Add NPK nutrients or beneficial bacteria as required. Mix thoroughly to reach proper moisture for pelleting.
Pelleting
Material is fed stably by anti‑bridging variable‑frequency feeding and forced feeding assembly. Ring‑die and rollers extrude materials into 4‑12 mm cylindrical fertilizer pellets without chemical binders.
Drying & Cooling
Fresh hot soft pellets go through dryer to reach target moisture, then rotary cooler reduces temperature, improving pellet hardness and reducing fines.
Screening
Vibrating sieve separates qualified pellets. Fines and broken particles are recycled back to pelleting section.
Automatic Packaging
Quantitative bagging machine packs finished pellets into 25‑50 kg bags for storage and sales.
RICHI equipment delivers reliable performance anywhere.
Application Scenarios of Chicken Manure Pelletizer

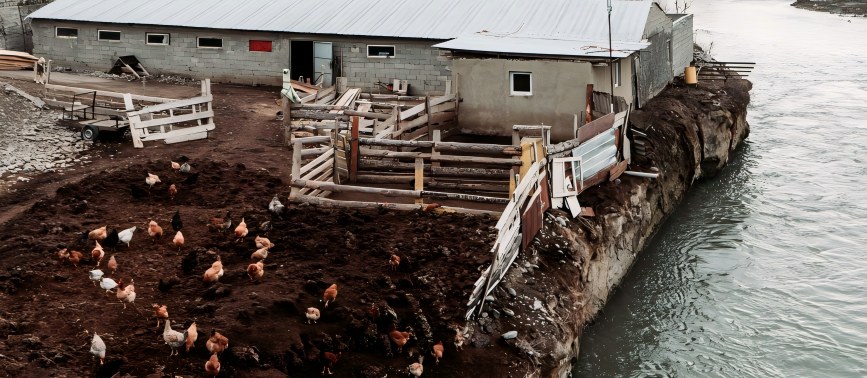

Manure recycling for large‑scale poultry farms
Process on‑site chicken manure waste into saleable organic fertilizer pellets, eliminate pollution from manure stockpiles.

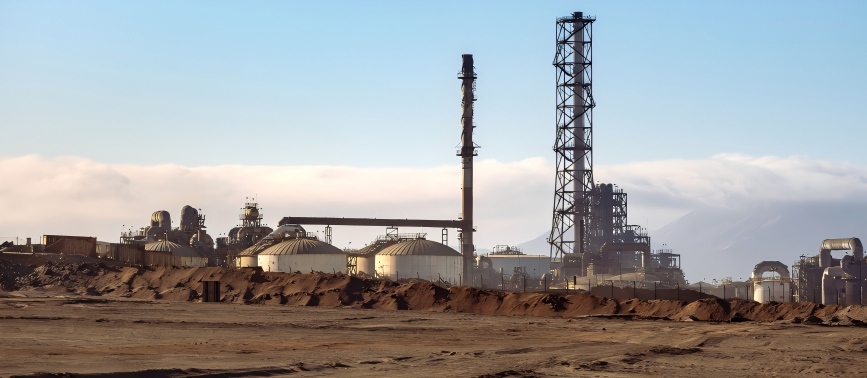

Commercial organic fertilizer plants
Use chicken manure as main raw material mixed with straw or rice husk to produce market‑ready fertilizer pellets for orchards, vegetable bases and farmland.

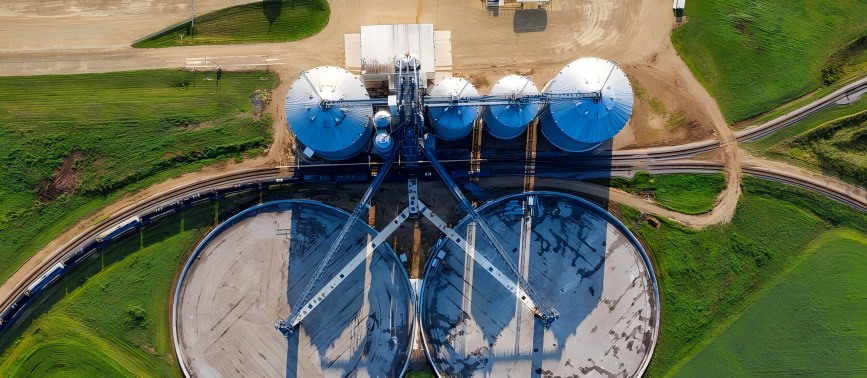

Comprehensive agricultural waste treatment projects
Process chicken manure plus other livestock manure and crop residues for total organic waste valorization.
RICHI Crafted, Fully Trusted.
Core Advantages of RICHI
Reliable, hassle-free and reassuring — these are the hallmarks of RICHI.
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
Can I use fresh chicken manure directly for pelleting? What are the material requirements?
Fresh wet chicken manure cannot be fed directly. This chicken manure pellet machine is designed for aerobically composted chicken manure with recommended moisture of 25‑35%. Fresh manure needs solid‑liquid separation and mixing with straw or rice husk to adjust moisture and carbon‑nitrogen ratio before composting. Otherwise, frequent blockage, poor pellet formation and high fines will occur.
Can I use a general‑purpose feed pellet mill instead of chicken manure pellet machine?
Not recommended. Chicken manure is corrosive and highly sticky. The dedicated manure pellet mill adopts anti‑corrosion wear‑resistant ring die & rollers plus arch‑breaking forced feeding system. Ordinary feed pellet mill suffers fast corrosion & heavy blockage when processing manure materials, leading to high failure rates.
What is the service life of wearing parts? Is replacement complicated?
Ring die and rollers are key wearing parts. Service life depends on impurity content, moisture and raw‑material formula. Anti‑corrosion special parts achieve longer service life than standard ones. Quick‑release structure enables fast replacement of ring die and rollers for different pellet sizes; chamber cleaning and daily maintenance are convenient.
How to handle environmental issues during chicken‑manure fertilizer production?
Dust and odour will be generated in production. Complete lines can be equipped with dust collection and bio‑deodorization systems to meet local emission standards. Small simplified lines can choose simple dust‑removal units.
