Extruder machine
According to different customer needs, RICHI designs different equipment models.
Application Scenarios
RICHI provides everything from animal feed pellet machines, biomass pellet machines to aquaculture extruders to ensure high-quality pellet production efficiency and high-quality pellet production quality.
Aqua Feed Extruder
The aquatic products industry is one of the industries that utilize extruder machines most extensively. RICHI aqua extruder machines adopt infinitely variable speed for frequency-conversion screws. They stably produce floating, slow-sinking and sinking aquatic pellets with dense structure that resists breakdown in water. A wide range of die hole sizes covers all standard aqua feed diameters for multi-purpose use. Premium component quality ensures consistent long-term production.
Pet Food Extruder
Pet food has numerous categories that require pellet extruders. RICHI pet food extruders feature reinforced structural strength with built-in torque overload protection, tackling complex high-fat, high-fiber formulas reliably. Equipped with full-automatic PLC control to monitor and adjust barrel temperature in real time. Twin-screw extrusion fully cooks raw materials, preserving nutrition and boosting palatability for pets.

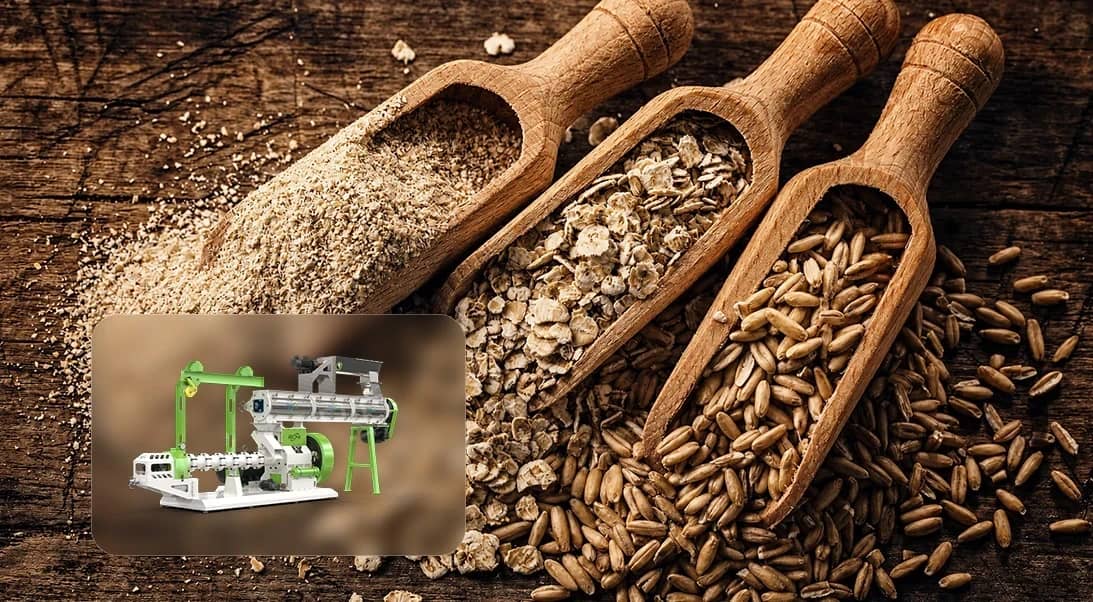

Whole Grain Extruder
Extrusion machines are also frequently used in the production of whole grains. Whole grain extruders rely on high-pressure thermal extrusion to trigger natural starch bonding, forming solid pellets with zero extra additives. Swap dies flexibly to make human-grade whole-grain meal replacer pellets or grain-based cat litter. All material-contact parts are food-grade stainless steel; screws are quick to disassemble, enabling thorough cleaning with zero cross-contamination between recipe switches.
RICHI Crafted, Fully Trusted.
Main Extruder Machines
RICHI supplies a comprehensive range of industrial extruders models.
RICHI’s Extruder Machines

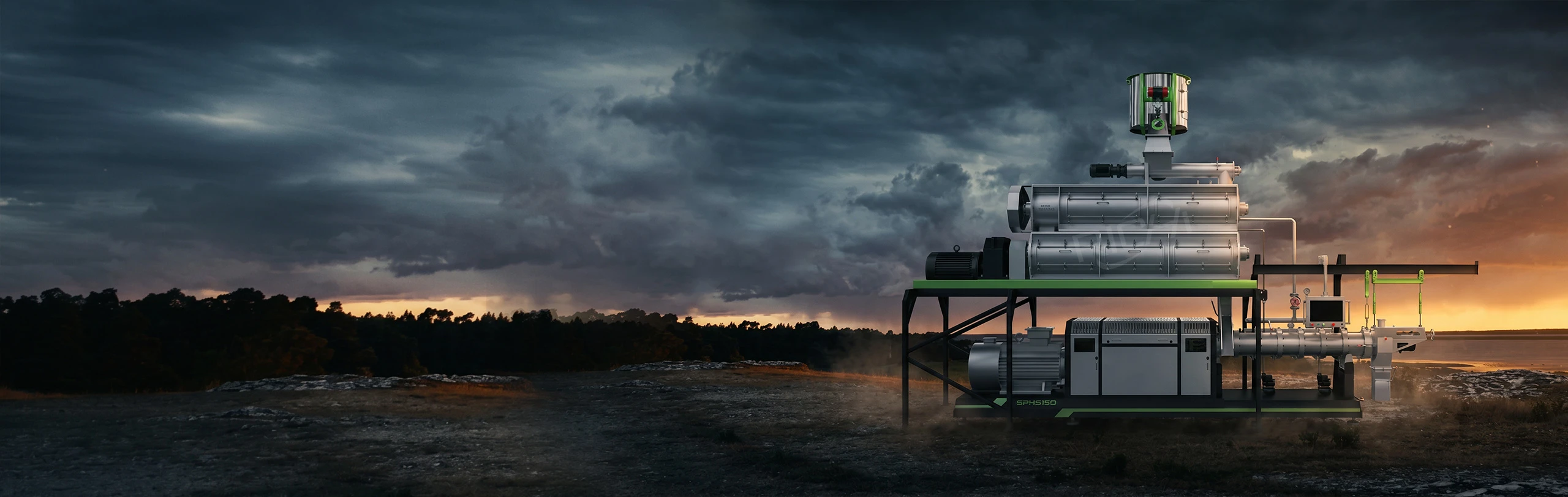

Extruder Machine

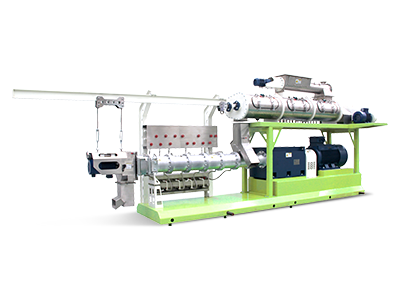

Twin Screw Extruder

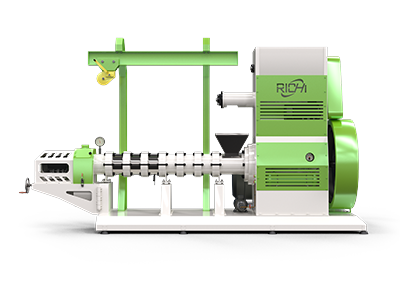

Single-screw Dry Type Extruder

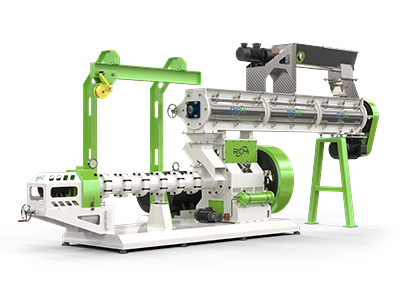

Single-screw Wet Type Fish Feed Pellet Extruder
RICHI Crafted, Fully Trusted.
Main Structure
RICHI extruder machines for sale consist of several core functional systems.
Components: Storage bin, bridge-breaking arch remover, frequency-controlled mixing auger, variable-speed feeding motor
Function: Delivers steady, uniform feed flow to prevent bridging or sticking from high-moisture, high-fat or high-fiber raw materials. Feeding speed links automatically to main engine load, adapting to aqua meat mash, pet food and grain mixes of varying fluidity. Vertical gear reducer drives the arch-breaking mechanism for uninterrupted discharge.
Feeding System
Components: Conditioning barrel, steam pipeline, temperature-pressure sensors, oil spraying nozzles
Function: Hot steam preheats and moisturizes raw materials for initial starch gelatinization and sterilization. Fish oil can be pre-blended for aqua feed, meat slurry evenly mixed for pet food. Mild humidification reduces screw wear for grain production; precise temperature control guarantees uniform extrusion expansion later.
Pre-Cooking System
omponents: Wear-resistant 38CrMoAl alloy twin screws, zero-gap fully intermeshing barrel, bimetallic extrusion liner, zoned temperature water jackets, pressure regulators
Function: High shear and thermal pressure fully cook materials. Low-temperature short-duration extrusion for whole grains locks in dietary fiber. Shear force and expansion rate are finely adjustable. Die hole sizes range φ0.6–20mm to fit nearly all pellet dimensions.
Main Extrusion Host System
Components: Movable cutter base, spring steel blades, independent frequency-controlled cutting motor, forming die plate
Function: Blades fit tightly against the die head for burr-free pellets. Variable cutting speed accurately controls pellet length. Turbulent discharge delivers smooth, plump finished pellets. Quick die changes produce round feed, shaped dental pet treats, micro fry starter feed or large livestock grain supplements for multi-scenario output.
Cutting & Forming System
Feed
Pre-cook
Extrude
Cut&Form
According to different customer needs, RICHI designs different equipment models.
Solutions
Take the production of cat litter particles as an example, RICHI’s extruder equipment for sale has a series of compatible applications.

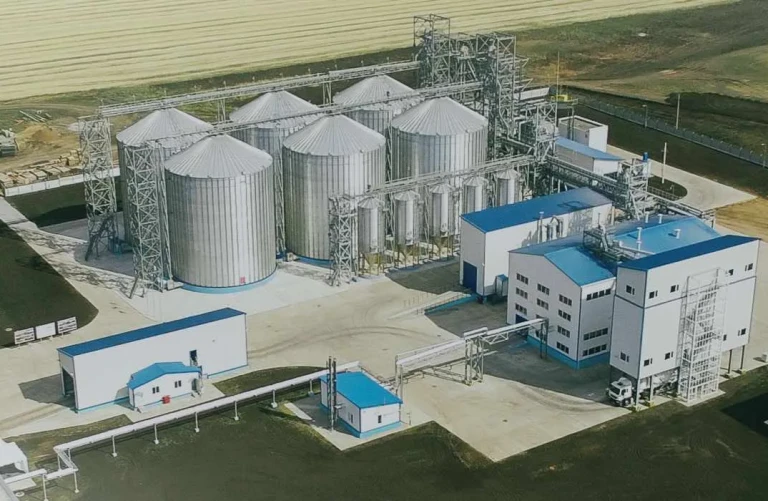

Aquatic Feed Extrusion Production Line
Application
This line produces floating, sinking and slow-sinking extruded feeds for freshwater fish, marine fish, shrimp, crabs, soft-shell turtles and ornamental fish. The finished pellet size ranges from 0.6 mm to 12 mm to fit fry and mature aquatic species. Our projects are widely deployed across Southeast Asia, the Middle East and South America.
Process Flow
Raw material receiving → crushing → automatic batching & mixing → conditioning → twin-screw extrusion & puffing → high-temperature drying → oil coating with grease, vitamins and attractants → cooling & screening → automatic packaging & warehousing.
Key Advantages
- High-temperature high-pressure extrusion fully gelatinizes starch, enabling pellets to stay stable in water for over 12 hours and reduce water pollution from residual feed.
- Instant high-temperature sterilization eliminates mold and salmonella, ideal for high-protein aquatic feed formulas (30%–45% protein).
- Both dry and wet extruder versions are offered: dry type for small factories (0.5–2 t/h), wet type for large-scale plants (3–12 t/h) with a yield rate above 95%.
- Wear-resistant screws and replaceable dies allow quick switch between pellet sizes for shrimp and crab sinking feed production.
Standard Capacity Options
0.5–2 t/h small line, 2.5–5 t/h medium line, 8–12 t/h intelligent large-scale turnkey feed plant.
Pet Food Extrusion Production Line
Application
Designed for full-stage dry cat and dog food, as well as pet treats and therapeutic diets for low-fat, urinary and gastrointestinal care. Pellets can be shaped into bones, hearts and other custom forms from 3 mm to 12 mm, well-received by premium pet food manufacturers in Europe, America and Southeast Asia.
Process Flow
Raw material crushing → automatic weighing & batching → high-speed mixing → pre-conditioning → twin-screw extrusion → drying → multi-layer oil & flavor coating with fresh meat slurry, lecithin and seasonings → cooling, screening & dedusting → finished product packaging.
Key Advantages
- High-shear screw design efficiently processes high-fat and high-fiber ingredients including meat meal and bone meal, improving digestibility and lowering loose stool risks for pets.
- Zoned precise temperature control protects heat-sensitive nutrients like probiotics for high-end functional pet food.
- Compatible with inline fresh meat adding systems for high-meat-content kibble; custom dies support diversified product shapes.
- Fully enclosed dust-proof structure meets food hygiene standards for EU export requirements.
Optional Upgrades
Multi-layer drying & cooling units, vacuum oil coating systems, kibble crushing devices for puppy and kitten food, automatic palletizing & packaging systems.
Whole-Grain Extruded Food Production Line
Application
Using corn, rice, wheat, oats, quinoa, beans and other grains as raw materials, this line manufactures instant breakfast cereals, puffed grain rice, meal replacement pellets, base powder for nutrition food and sandwich grain snacks. It also processes expanded soybean as feed raw material, covering health food, snacks and feed industries.
Process Flow
Grain cleaning & impurity removal → dehulling/crushing → batching & mixing → pre-conditioning → twin-screw extrusion → pelleting / flaking → drying → seasoning, cooling & screening → packaging.
Key Advantages
- Low-shear screw modules preserve dietary fiber and nutrients, making extruded grains easier to brew and cook.
- One production line supports both spherical grain pellets and flake products for flexible product diversification.
- Highly compatible with single or mixed grains; fruits, vegetables and protein powder can be added to develop functional meal replacements.
- All material-contact parts adopt 304 stainless steel for easy cleaning and compliance with food safety standards for supermarket and export-grade food.
Typical End Products
Instant oat flakes, puffed multigrain rice, breakfast cereal loops, meal replacement grains, extruded soybean and grain base powder.
Shared Strengths of All RICHI Extrusion Lines
High Versatility: The same twin-screw extruder can switch between aquatic feed, pet food and whole-grain production by replacing screw modules and dies to cut equipment investment costs.
Intelligent PLC Control: Hundreds of production formulas can be stored and recalled with one click to minimize manual errors.
Full Turnkey Service: RICHI provides plant layout design, equipment manufacturing, export customs clearance, overseas installation, operator training, 1-year full machine warranty and lifelong technical after-sales service. Our projects have been delivered to more than 140 countries worldwide.
Energy-efficient & Stable Operation: Optimized drive systems reduce energy consumption by 12%–18% versus peer products. Wear-resistant barrels extend service life to support 24-hour continuous industrial production.
Project Cases
RICHI has accumulated numerous successful project cases through our dedicated full-service support.
Puerto Rico

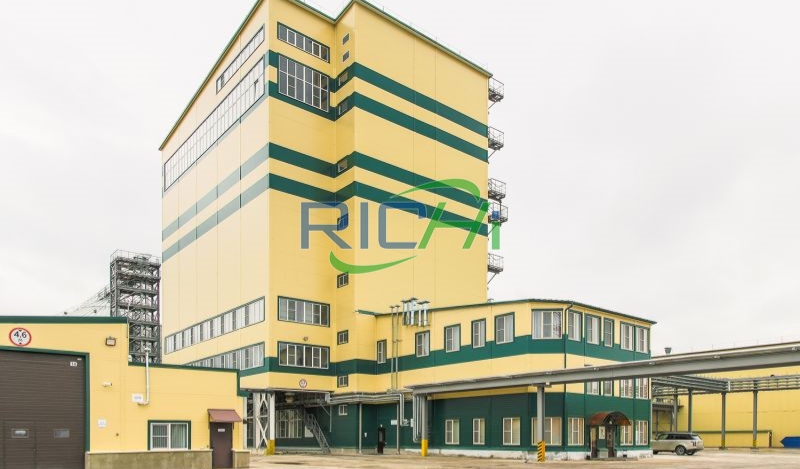

1.2–1.5T/H Floating Trout Feed Twin-Screw Extrusion Line, Puerto Rico
- Launch Date: Feb 18, 2025
- Capacity: 1200–1500kg/h floating feed for freshwater trout
- Core Equipment: RICHI twin-screw aqua extruder, 3-layer steam conditioner, oil coater, counter-flow cooling & sifting line
- Raw Materials: Fish meal, corn flour, soybean meal, wheat bran, fish oil
- Pellet Sizes: 1.5mm (fry), 6mm (adult trout), fully floating
- Delivery Lead Time: 45 days
USA

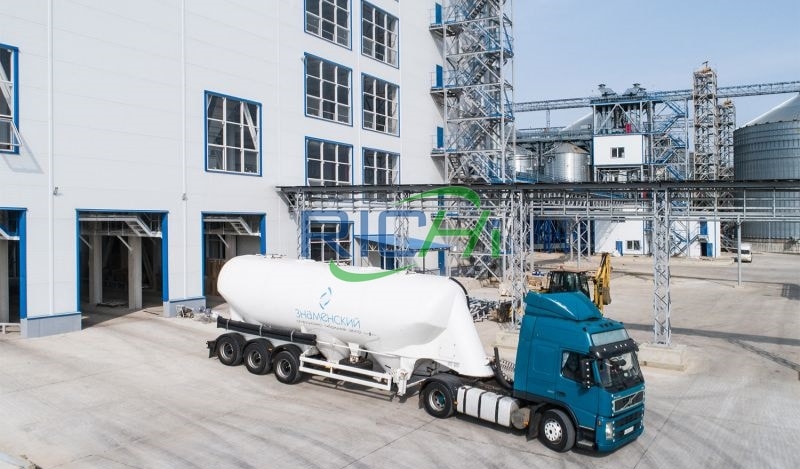

2T/H Premium Shrimp & Bass Feed Extrusion Line, USA
- Launch Date: Jul 9, 2024
- Capacity: 2t/h compound feed for whiteleg shrimp & largemouth bass, fast switch between floating/sinking types
- Core Equipment: Wet twin-screw aqua extruder, frequency-controlled bridge-breaking feeder, full PLC central control
- Raw Materials: Shrimp meal, sunflower meal, corn, soy protein
- Pellet Sizes: 0.8mm shrimp fry starter, 2.5mm grow-out shrimp feed, 4mm sinking bass feed
- Launch Lead Time: 60 days
Malaysia

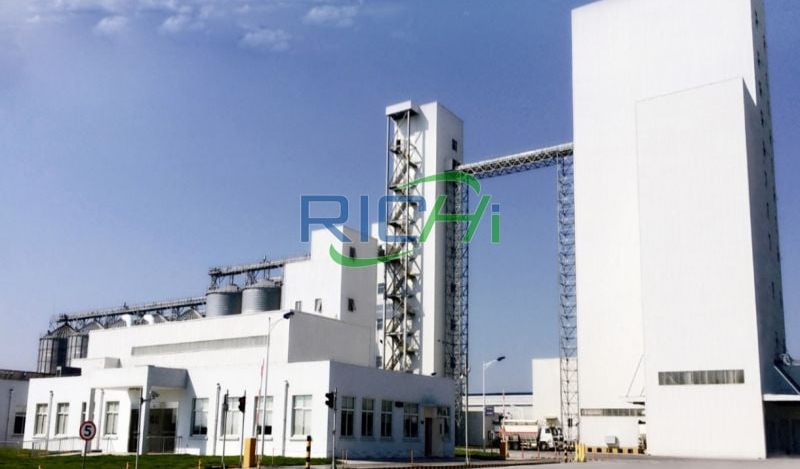

3T/H Full-Life Cat & Dog Pet Food Extrusion Line, Malaysia
- Launch Date: Nov 22, 2023
- Capacity: 3t/h fresh meat pet food; one line produces fluffy puppy feed, low-fat adult cat feed & shaped dental chews
- Core Equipment: High-torque pet-grade twin-screw extruder, heavy-duty reducer, spring steel frequency cutter
- Raw Materials: Frozen chicken slurry, meat meal, brown rice, corn, vitamin premix
- Pellet Features: Even internal pores for high oil absorption, stable forming for shaped dental sticks
- Delivery Lead Time: 52 days
Turkey

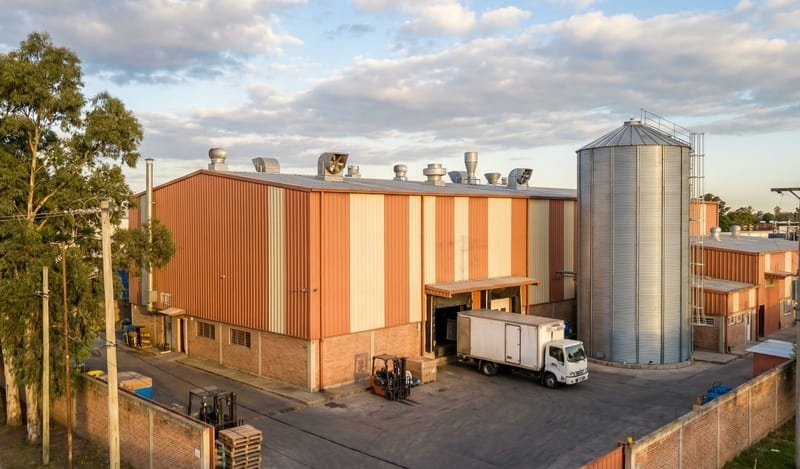

1.8T/H Low-Temp Grain-Free Hypoallergenic Pet Food Line, Turkey
- Launch Date: Mar 15, 2024
- Capacity: 1.8t/h grain-free low-allergy feed for cats & small dogs
- Core Configuration: Adjustable low-shear twin screws, food-grade stainless steel barrel, fast-clean structure
- Raw Materials: Lamb meal, chickpeas, tapioca flour, fruit & vegetable powder (no wheat/corn)
- Pellet Sizes: φ1.0–8mm adjustable, dust loss below 2%
- Advantage: Recipe change & full cleaning finished in 30 mins, ideal for multi-SKU small-batch orders
Germany

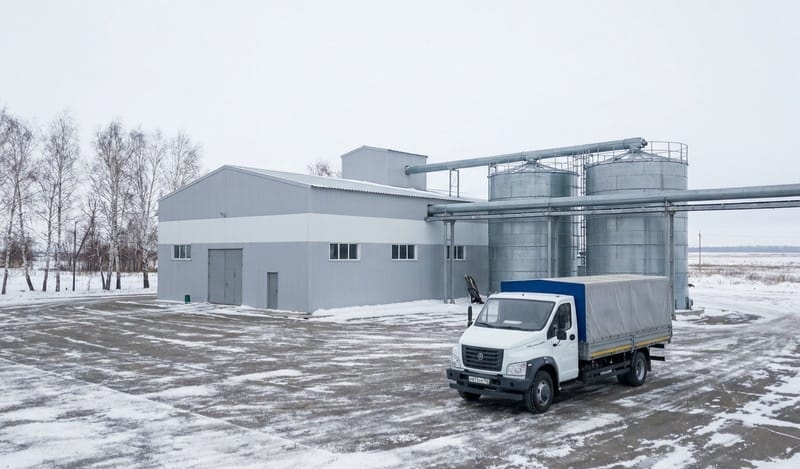

2.2T/H Human-Grade Organic Whole-Grain Meal Replacer Line, Germany
- Launch Date: Jan 6, 2025
- Capacity: 2.2t/h organic extruded grain pellets (oat, quinoa, brown rice blend)
- Core Equipment: Low-shear gentle extrusion twin-screw unit, full food-grade stainless steel contact parts
- Process Feature: Natural starch bonding with zero chemical binders; short high-temp extrusion locks dietary fiber
- Finished Product: 3mm breakfast meal replacer pellets
- Launch Lead Time: 38 days
Thailand

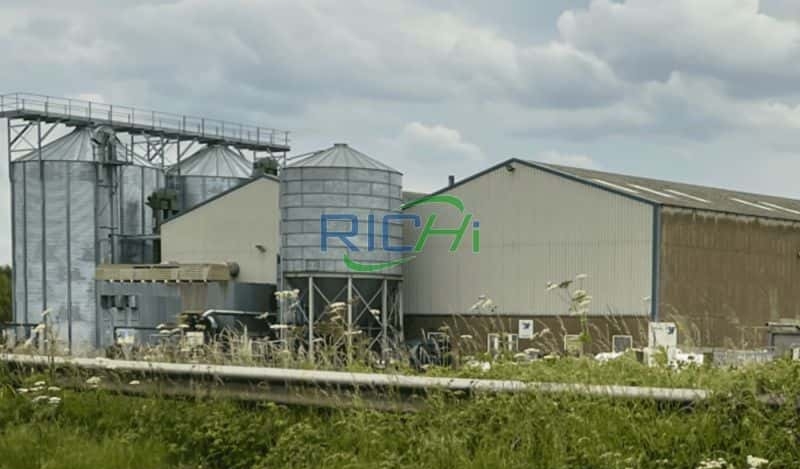

2.6T/H Dual-Purpose Line for Grain Cat Litter & Cattle/Sheep Supplement Feed, Thailand
- Launch Date: Aug 30, 2023
- Capacity: 2.6t/h total output; peak season for 3mm grain tofu cat litter, off-season switches to 6–8mm ruminant grain supplement pellets
- Core Equipment: Multi-purpose universal twin-screw extruder, turbulent discharge unit, wear-resistant 38CrMoAl screws
- Raw Materials: Rice bran, bagasse, broken corn, straw powder
- Product Performance: Highly absorbent porous cat litter; ruminant feed with 20% higher digestibility via full gelatinization
- Delivery Lead Time: 41 days
Vedio of RICHI’s Extruder Machine

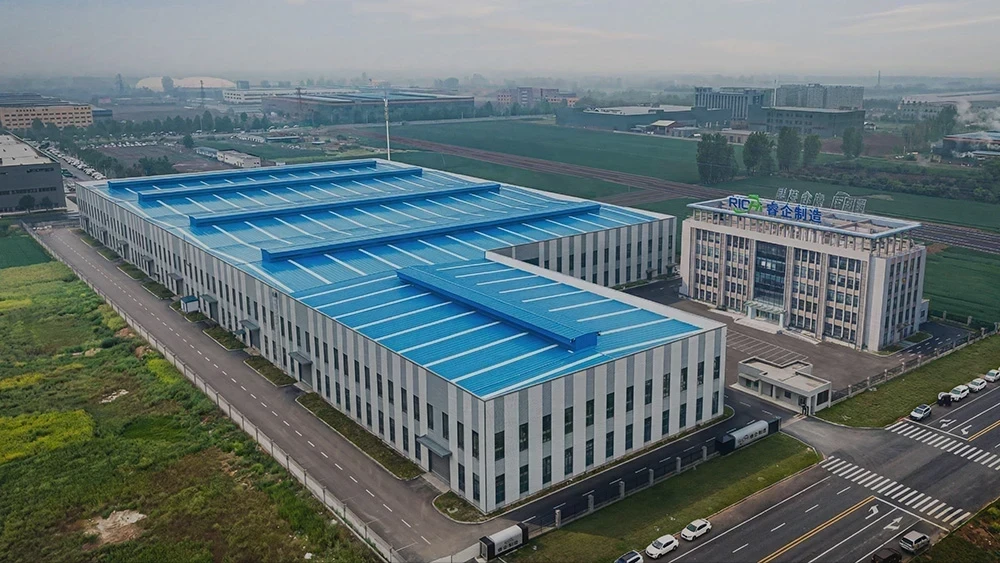

RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why Choose RICHI？
Our story originates from the Central Plains, where we started with one simple mission: to build reliable, premium equipment.
Extruder Machine
The particles produced by RICHI’s extruder machine are of high quality and durable.
RICHI Crafted, Fully Trusted.
Customer Testimonials
Customer satisfaction is always our top priority.
Our RICHI aqua pellet extruder runs very stable all day. The floating trout pellets hold well in water for hours. It meets our production needs perfectly, and the machine is super easy to operate.
Carlos
Puerto Rico — Factory Director
We can switch between sinking shrimp feed and floating fish feed quickly. This machine saves about 15% power, and all pellets come out uniform and high-quality.
Hunter
United States — Factory Owner
We produce high-meat pet food and dental treats on one line. It rarely gets blocked even with sticky meat materials, and the finished pellets are always neat and consistent.
Su Lin
Malaysia — Production Manager
Great machine for our grain-free cat food. It preserves nutrition well, and we can clean and switch formulas fast for our small-batch production.
Ahmet
Turkey — Plant Manager
RICHI Crafted, Fully Trusted.
Core Advantages of RICHI
Reliable, hassle-free and reassuring — these are the hallmarks of RICHI.
Reliable Premium Quality
RICHI operates standardized manufacturing workshops. Core components for feed, biomass, fertilizer, bedding and aquafeed lines are self-developed and self-produced; key transmission and pressing parts adopt wear-resistant alloy steel. All finished machines comply with Chinese national and European-American inspection standards, undergoing full no-load and raw material load testing before delivery. Validated across dozens of countries with diverse climates and complex raw material conditions, our equipment matches international benchmarks in forming rate, energy consumption and service life. Multi-stage inspections from raw material processing to finished shipment guarantee stable durability, with customer operational failure rates far below industry averages.
Hassle-Free Custom Procurement
Our professional engineering team provides free site surveys and tailor-made turnkey solutions based on local raw material properties, target output and environmental regulations, covering full capacity ranges from 0.5 t/h to 80 t/h. Customers may purchase standalone machines or full turnkey production lines, eliminating tedious comparison of scattered spare parts. We deliver one-stop support including plant layout design, equipment selection, process planning and auxiliary machine matching, catering to diverse budgets of small and large farms, processing plants and new energy enterprises.

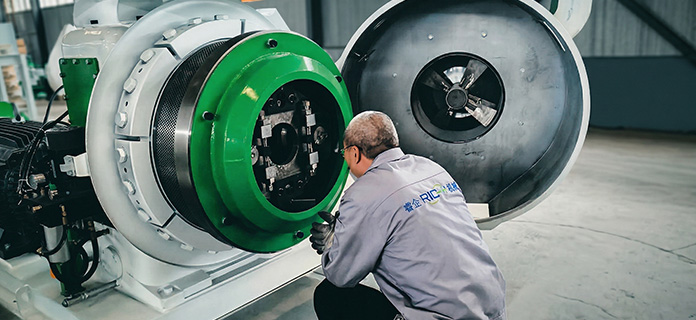

Worry-Free Global After-Sales Service
RICHI runs a global localized after-sales network with regional technical teams worldwide. Services include pre-sale technical consultation, on-site installation & commissioning during project execution, and hands-on operator training before startup. Lifelong remote online technical support delivers rapid fault response post-operation. Spare parts are stocked globally for fast local delivery, and overseas field maintenance by our engineers is available upon request. Value-added services such as formula optimization and production line upgrades provide full-lifecycle protection to resolve all post-commissioning production concerns.
