Feed Granulator Machine
As a leading domestic manufacturer of ring die pelleting equipment, RICHI has launched the SZLH series feed granulator machine after in-depth industry cultivation. Widely recognized for stable pellet forming, thorough maturation and strong versatility, ring die feed pellet mills have become the mainstream choice for large-scale and standardized pelleting.
According to different customer needs, RICHI designs different equipment models.

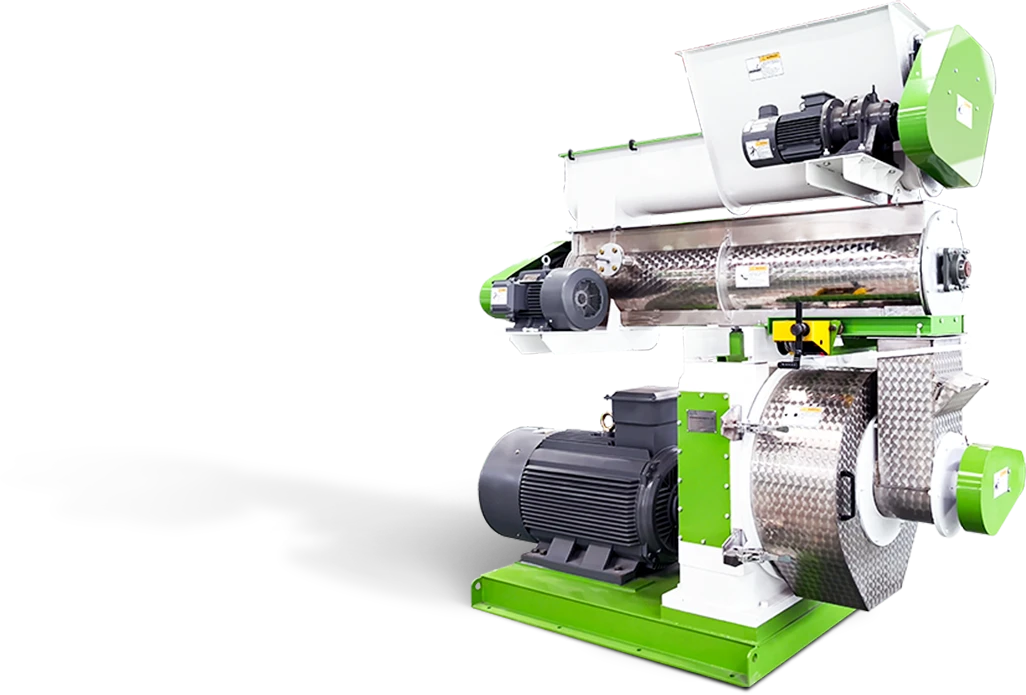

SZLH320 Feed Granulator
The SZLH320 is RICHI’s golden model designed for 3–4 TPH feed pelleting. It perfectly matches the needs of medium-small feed mills, scaled farms, and feed cooperatives—avoiding the “too small to be efficient, too large to be economical” dilemma.
Animal feed production
High-precision ground gearbox: 15% higher transmission efficiency than standard belt drives
Low noise & long service life design
37kW Siemens main motor: Energy-saving and stable
Pellet size: 2.0–12.0mm, covering poultry/livestock (chicken, duck, pig, cattle, sheep, rabbit) and aquatic (fish, shrimp) feeds
Compact, energy-efficient, stable, and powerful—the SZLH320 is your smart choice.
Main Motor Power:37 KW
Output:3.0-4.5 T/H
RICHI Crafted, Fully Trusted.
Equipment Structure
Variable-Frequency Feeding System
SUS304 stainless steel hopper: Corrosion-resistant, non-stick
Internal strong magnetic bars: Remove iron debris, screws, and hard objects
1.5kW variable-frequency motor: Stepless speed regulation for precise feeding control
Variable-pitch design: Prevents material bridging; ensures uniform, stable, clean feeding
Conditioning System
Stainless steel conditioner: Material ripening unit with steam injection
SUS304 stainless steel barrel & blades: Durable and hygienic
2.2/4.0kW motor: Drives blade mixing & conveying
Axial steam injection: Fully mixes steam and material for high gelatinization, sterilization, and improved pellet hardness/finish
Pelleting System
Core components: ring die, press rolls, cutting knives, safety door
42CrMo alloy ring die: Wear-resistant, long service life
2 symmetric press rolls: Even pressure for consistent compression
2 carbide cutting knives: Adjustable pellet length
Safety door with limit switch: Ensures operator safety
Transmission System
37kW Siemens motor + high-quality gearbox: Powerful drive
42Cr alloy main shaft + safety pin: Automatically cuts power under overload to protect gears and dies
HT250 high-strength cast iron gearbox: Vibration-resistant, stable
Hardened & ground gears: High transmission efficiency, low noise
Frame & Lubrication System
Thick steel plate welded & annealed frame: Low center of gravity, stable operation, minimal vibration
Dedicated gearbox oil sump: Equipped with oil level gauge for easy monitoring
Centralized lubrication for press rolls & main shaft: Simplifies daily maintenance
According to different customer needs, RICHI designs different equipment models.
SZLH Model Feed Pellet Granulator
The SZLH series is RICHI’s flagship ring die pellet mill line, fully meeting production needs from small farms to large feed factories.
Various Capacities of RICHI Feed Granulator Machine
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main motor power ( kW ) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder motor power ( kW ) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner power ( kW ) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter（mm） | 2~12 | |||||||
| Capacity（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
Videos Of Feed Pellet Mills
RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why Choose RICHI？
Our story originates from the Central Plains, where we started with one simple mission: to build reliable, premium equipment.
SZLH Series Feed Pellet Mills
The SZLH series is one of the core product categories of RICHI pellet mills. It covers various production capacities and is widely used.
RICHI Crafted, Fully Trusted.
Core Advantages
The SZLH model feed granulator possesses a range of core advantages for production applications.
RICHI Crafted, Fully Trusted.
Application Scenario
The moderate capacity of the SZLH320 grants it extensive applicability. Listed below are several typical application scenarios for your reference.
Small and Medium-sized Commercial Feed Mills
With an hourly output of 3 to 4 tons, the daily capacity of the SZLH320 ranges from 24 to 40 tons. It is well-suited for feed production lines with a standard output of 1–2 tons/h or 3–5 tons/h. Capable of processing compound feed, concentrated feed and pellet feed efficiently, it ensures stable and mass production.
Large-scale Breeding Farms
For large-scale farms, purchasing commercial feed requires substantial costs. The SZLH320 feed granulator allows easy on-site feed processing. Equipped with this machine, pig farms, chicken farms, cattle farms, sheep farms and other breeding sites can build their own internal feed workshops. It effectively cuts operating costs, guarantees feed safety and stable quality, and promotes healthy growth of livestock and poultry. The SZLH320 supports single-person operation, with simple maintenance, high safety and easy use.
Forage & Straw Utilization Feed Bases
If you run a forage planting base and need to process alfalfa pellets, leymus chinensis pellets and other forage products, the SZLH320 is an ideal option. To avoid straw waste, crop straw can be recycled and processed into ruminant feed pellets. This solves the problems of straw waste and storage, and raises the proportion of self-produced feed, bringing multiple benefits at once.
Supporting Production Line
Pelleting and cooling are single procedures in feed processing. RICHI provides complete turnkey feed production lines to maximize overall efficiency
Crushing
Screened raw materials are ground into qualified particle size via water drop hammer mills, vertical grinders and small crushing equipment.
Mixing
Crushed materials are fully blended with multi-type mixers (single-shaft double-layer blade mixers, twin-shaft blade mixers, etc.) per production requirements.
Pelleting
Raw materials are conveyed by variable-frequency feeders to conditioners for steam humidification and maturation, then pressed into pellets in the pelleting chamber.
Cooling
Fresh pellets are hot and soft; a counterflow cooler reduces their temperature and hardness increases for safe storage.
Screening
Fines and unqualified pellets are separated and returned for re-processing, ensuring consistent quality.
Packing
Finished pellets are weighed and packed using automatic packing machines for storage or sale.
RICHI Crafted, Fully Trusted.
Success Stories

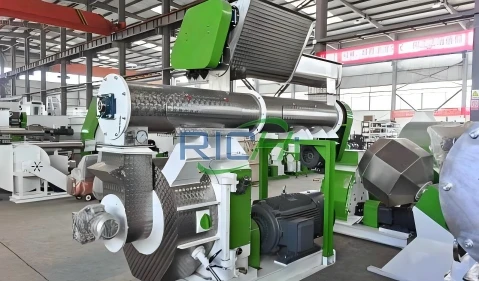

Africa
3–4 TPH Poultry & Livestock Feed Line
- Configuration: SZLH320 + hammer mill + mixer + counterflow cooler + screener + packer
- Uniform pellets, low powder rate; meets chicken/cattle/sheep feed needs
- 18 months of stable operation with no major repairs

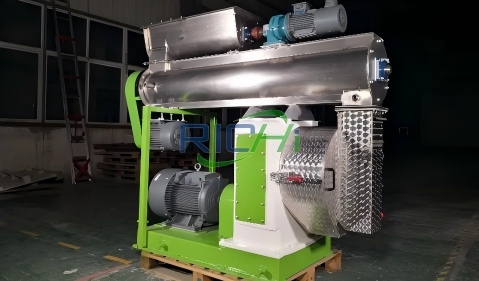

Russia
Small Aquatic Feed Mill
- Configuration: SZLH320 + double-layer conditioner (enhanced gelatinization)
- Produces 3–6mm floating fish feed with ≥4-hour water stability
- Complies with Russian aquatic feed standards; eco-friendly and healthy
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
Can it produce both livestock and aquatic feeds without extra equipment?
Yes. Switch ring dies and adjust processes for different feeds.
Livestock/poultry feed: Standard ring die (2.0–12.0mm)
Aquatic feed: Steam conditioning (optional double-layer conditioner) for ≥4-hour water stability
Do I need skilled operators? Can beginners learn quickly?
No skilled workers needed.
Simple design + clear manual
On-site installation, commissioning, and training provided
Master operation in 1–2 days; daily operation requires only 1 worker
Is maintenance costly?
Low maintenance cost.
Routine checks: Lubrication, cleaning, wear part inspection
Minimal cost for lubricants and consumables
