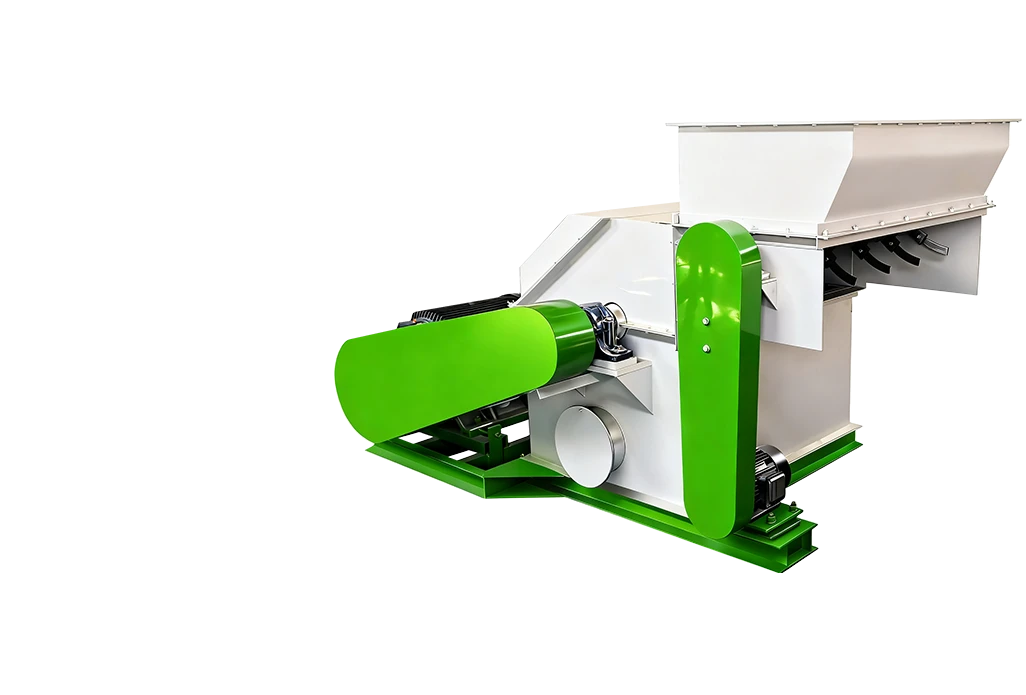

Grass Crusher Machine
The forage crusher is a professional grinding equipment for various forage, straw and pasture materials. It is widely applied in livestock breeding, feed processing, biomass pre-treatment and other production scenarios, featuring high efficiency, durability and strong versatility.
According to different customer needs, RICHI designs different equipment models.
Grass Crusher Machine for Sale
Crushed Grass Pellet Production
Developed independently by RICHI, the grass crusher adopts a core hammer mill structure to efficiently process all kinds of forage and straw. It delivers uniform particle size with adjustable fineness.
It can be perfectly matched with RICHI MZLH pellet mills and SSJ shredders. With outstanding durability, energy saving and simple operation, it is widely used in animal husbandry, feed production and biomass recycling industries.
Finished Pellet Diameter:0.5-20 mm
RICHI Crafted, Fully Trusted.
Equipment Structure

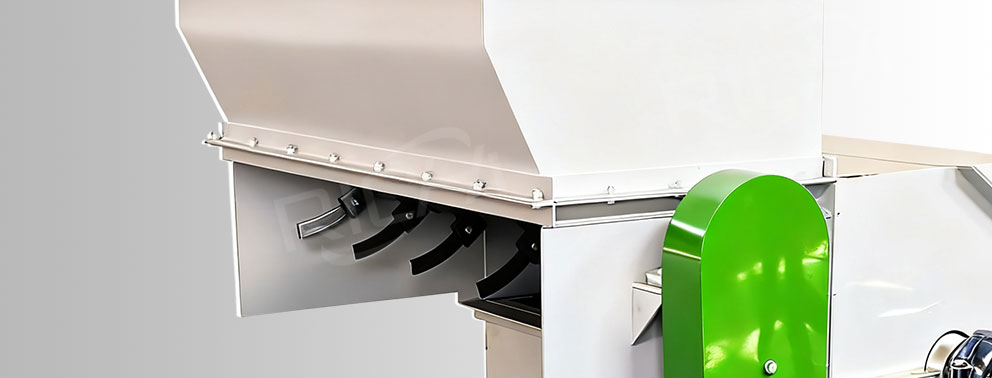

Forced Feeding System
Equipped with an inclined widened feeding inlet with optional axial / tangential feeding modes. Built-in guide plates and anti-rebound baffles ensure safe feeding.
The variable-frequency impeller feeder guarantees rated working efficiency. Removable curved material baffles prevent winding and bring continuous raw materials into the crushing chamber.

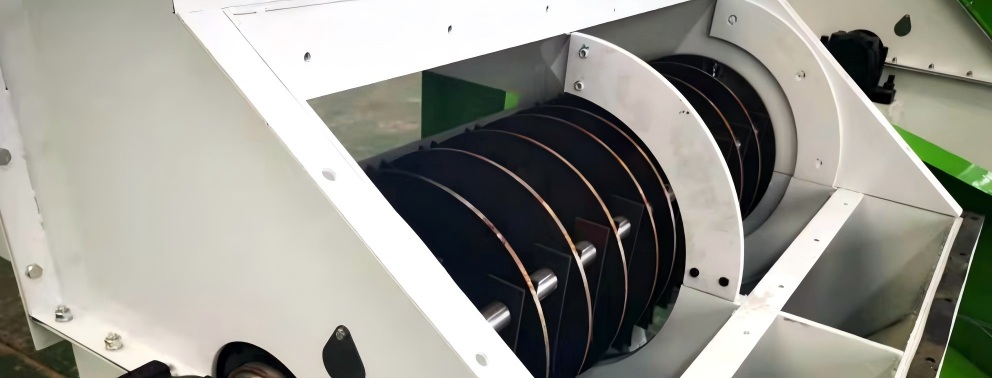

Crushing Chamber
The fully enclosed, high-strength enlarged chamber is lined with wear-resistant plates for long service life.
The heavy-duty solid main shaft fitted with SKF bearings and precision rotor disc are equipped with scientifically arranged wear-resistant alloy hammers.
The rotor undergoes high-precision dynamic balancing, ensuring low vibration and stable high-speed operation in line with RICHI high-standard core component manufacturing.

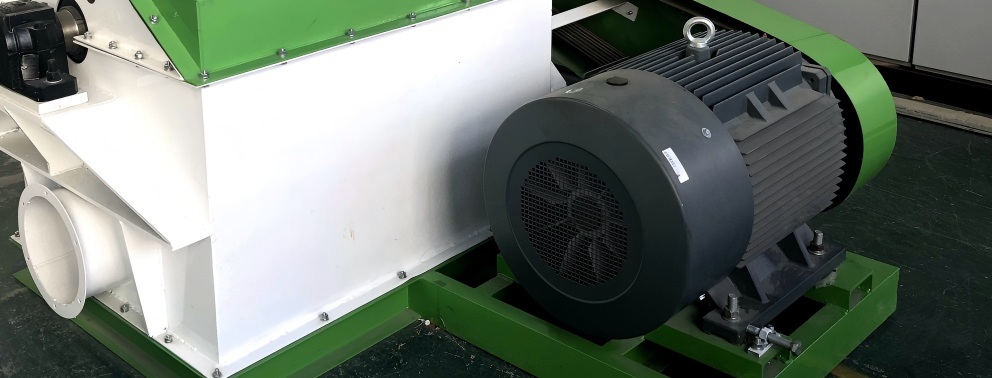

Transmission System
Driven by dual variable-frequency motors with independent power supply and separate operation. Excellent heat dissipation and stable performance effectively reduce failure rates during frequent speed adjustment.

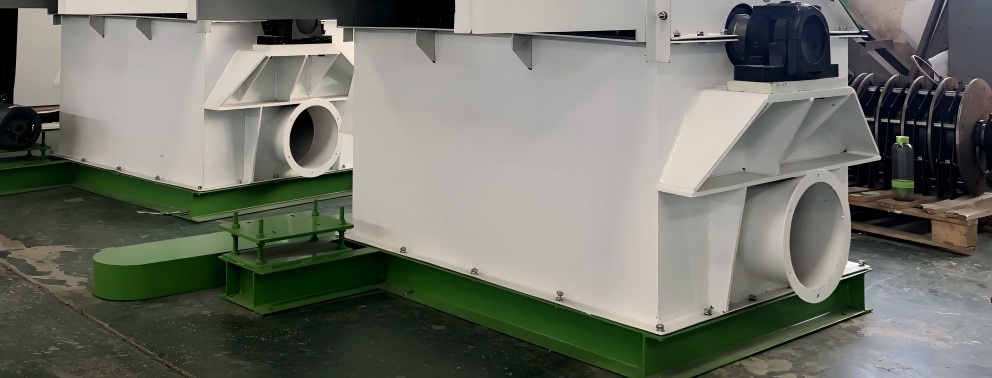

Discharging Structure
Wind-assisted discharging prevents material accumulation and ensures smooth output.
The bottom direct discharge outlet can be directly connected to conveyors, mixers and MZLH pellet mills. Reserved dust removal interfaces support pulse dust collectors for clean production.
Video Of RICHI Grass Crusher Machine
RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why Choose RICHI？
Our story originates from the Central Plains, where we started with one simple mission: to build reliable, premium equipment.
Grass Crusher Machine
Our grass crusher features a sleek and elegant design along with excellent configuration.
RICHI Crafted, Fully Trusted.
Core Advantages
The grass crushing machine possesses a range of core advantages for production applications.
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
Is the machine loud and dusty? Does it meet environmental standards?
The grass crusher fully meets environmental protection requirements. Adopting low-noise design and imported SKF bearings, it effectively reduces friction, vibration and running noise.
The fully sealed structure greatly controls dust leakage. Reserved dust interfaces can connect pulse dust collectors to achieve dust-free workshops, suitable for farms and feed factories.
What are the main wearing parts? Is the maintenance cost high?
Main consumables are alloy hammers and screens. Reversible hammers and thickened split screens extend service life and lower replacement frequency.
Core parts adopt genuine SKF bearings with stable quality and low failure rates. Daily maintenance only requires regular lubrication and interior cleaning.
What safety protections are equipped? What operational notes should be followed?
Anti-rebound baffles prevent material splashing; full transmission shields avoid accidental contact; interlock maintenance doors guarantee safe inspection after shutdown.
During operation, please keep hard impurities out and never reach into the feeding inlet. Simple standardized start-stop operation ensures safe daily use.
