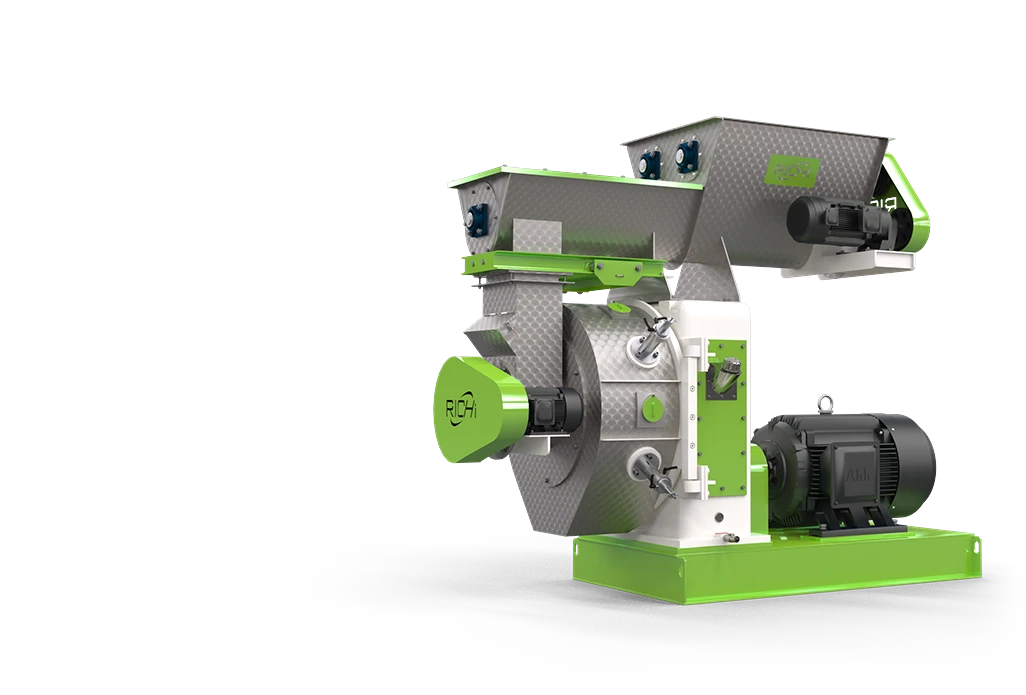

Rice Husk Pellet Mill
RICHI MZLH series rice husk pellet mill is a heavy-duty extrusion pelletizing equipment specifically developed to address the pain points of rice husks, such as high silicon content, light texture, easy bridging and clogging, and strong abrasion.
According to different customer needs, RICHI designs different equipment models.
Rice Husk Pellet Machine
The rice husk machine is specifically designed to solve the problem of resource utilization of rice husks, a byproduct of rice processing.
Rice husk finished products
Rice husk pellets made by the rice husk pellet mill feature:
- Available for single rice husk pelleting or blended production with straw, peanut shells and sawdust.
- Customizable pellet sizes via easy cutter adjustment;
- High hardness, low breakage and minimal dust, qualified in pellet durability;
- High ash fusion temperature, ideal fuel for industrial boilers and gasifiers as standard commercial biomass fuel;
Output:0.2-4.0 T/H
According to different customer needs, RICHI designs different equipment models.
Equipment Structure

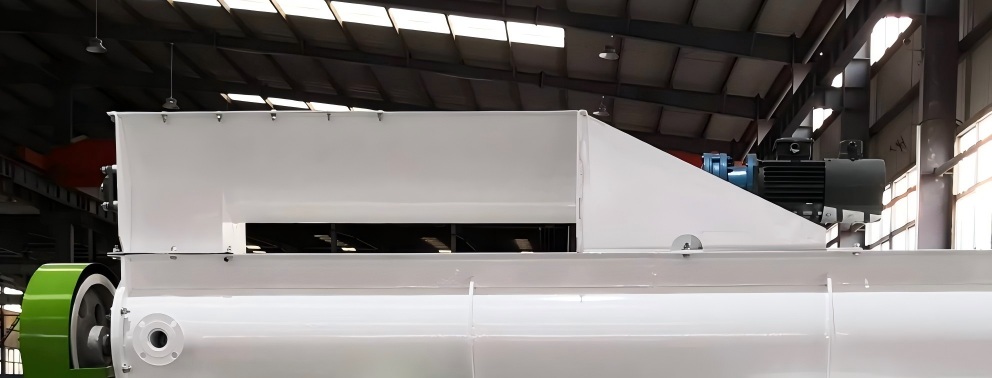

Forced Feeding & Anti-Bridging Hopper
Equipped with screw forced conveying structure customized for lightweight, fluffy rice husks. It effectively prevents material bridging, hanging and blockage inside the bin, ensuring uniform and uninterrupted feeding for steady continuous production.
42CrMo Wear-Resistant Alloy Ring Die & Roller
Core pressing components use thickened 42CrMo alloy steel to withstand severe abrasion from high silica content in rice husks. Ring dies with apertures ranging from 4mm to 12mm are interchangeable to produce pellets of different sizes, significantly extending the service life of wearing parts.
Heavy-Duty Main Motor
The branded Siemens motor delivers stable and adequate power under long-term full-load operation. It features low energy consumption, low noise and strong overload capacity to support round-the-clock continuous running.
SKF Heavy-Load Bearing
High-precision SKF heavy-duty bearings are adopted for the main transmission unit. They greatly cut down friction loss, reduce breakdown frequency and enhance the overall reliability during large-scale production.

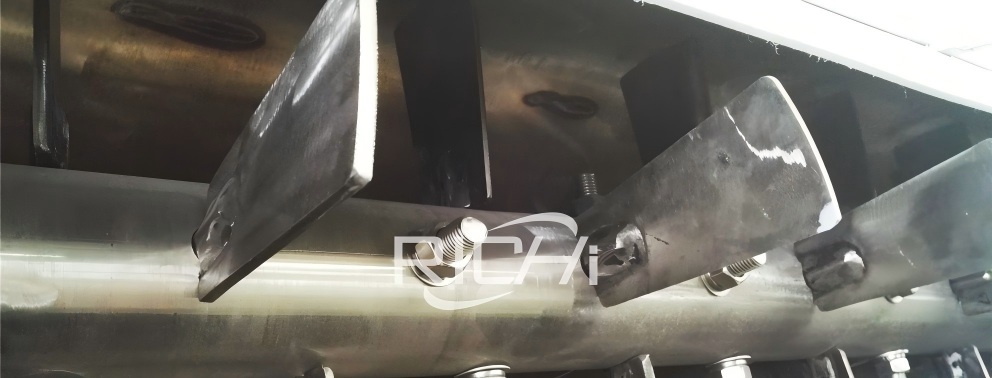

Adjustable Pellet Cutting Mechanism
The external cutter can be freely positioned to control pellet length between 10mm and 30mm, producing neatly sized and uniform finished rice husk pellets.
According to different customer needs, RICHI designs different equipment models.
Rice Husk Pellet Making Machine
Technical parameters of biomass pellets machine for rice husk.
Various Capacities Of Rice Husk Pellet Mill
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main motor power ( kW ) | 22 | 37 | 90 | 132 | 200 | 250 |
| Ring Die Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter（mm） | 4~12 | |||||
| Capacity（T/H） | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
On-site Running Display
RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why choose RICHI？
Great enterprise, quality products, tangible strength.
How to Make Rice Husk Pellets?
RICHI’s equipment is capable of producing high-quality and efficient rice husk pellets.
Core Advantages
The rice husk pellet mill possess a range of core advantages for production applications.
RICHI Crafted, Fully Trusted.
Success Stories
RICHI has accumulated numerous successful project cases through our dedicated full-service support.
Laos
Laos Small-Scale Rice Husk Pellet Project
- Model: MZLH350, capacity 0.3–0.5 t/h, pellet diameter 6mm. The pellets are mainly used as boiler fuel for local rice mills.
- It can produce 2.5–4 tons of finished pellets per 8-hour shift, and surplus products are exported to Thailand and Vietnam. Only a workshop of around 300 square meters is required for equipment layout.
Vietnam
Vietnam MZLH520 Rice Husk Pellet Production Line
- Output reaches 1.5–2 t/h.
- Equipped with supporting drying equipment to cope with fluctuated moisture content of local rice husks.
- The finished 6–8mm fuel pellets are supplied to domestic industrial boilers and for foreign trade export.
Brazil

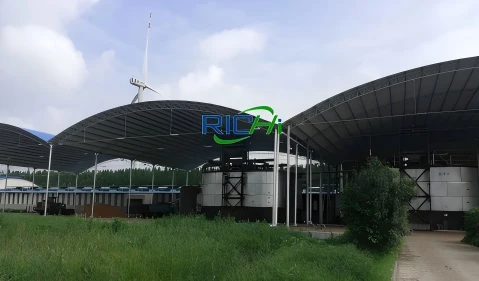

Brazil 1.5–2 t/h Rice Husk Pellet Plant
- Produced pellets are directly applied as fuel for grain drying equipment to replace diesel and natural gas and cut production costs. Excess pellets are sold to bakeries, greenhouse heating projects and small-scale biomass power stations, with partial exports to neighboring Uruguay and Paraguay.
Supporting Production Line
Raw Material Feeding and Destoning
Rice husks are conveyed by belt conveyor into the destoner to eliminate mixed stones, gravel and hard debris. This critical pretreatment effectively avoids severe abrasion to alloy ring dies and rollers caused by silica-containing impurities, greatly extending the service life of key wearing parts.
Drying and Moisture Conditioning
Raw materials go through a rotary drum dryer to stabilize the moisture content within the optimal pelleting range of 12%–20%. Proper moisture ensures high molding rate, compact density and stable quality of final pellets.
High-pressure Pellet Extrusion
Treated rice husks are fed into the MZLH rice husk-specialized ring die pellet mill. Equipped with anti-bridging forced feeding device, the machine prevents blockage of fluffy light husks and extrudes solid 6mm or 8mm cylindrical pellets through physical high-pressure squeezing, with no chemical binders required.
Counter-flow Cooling & Solidification
Hot freshly extruded pellets enter the counter-flow cooler for full cooling and hardening. This procedure increases pellet durability index (PDI) and minimizes breakage during subsequent storage and long-distance transportation.
Vibrating Screening
A vibrating screener separates fine powder and broken fragments from intact pellets, only retaining uniform, high-quality finished products.
Automatic Weighing & Packing
Qualified pellets are temporarily stored in the finished product bin, then automatically weighed and sealed into standard bags by the packaging machine for warehouse stocking or commercial export.
RICHI equipment delivers reliable performance anywhere.
Application Scenarios
Industrial Boiler Fuel
The largest application. Used as clean fuel for factory boilers, biomass power plants, grain drying equipment and cement kiln co-processing, replacing coal and fossil fuels.
Agricultural Utilization
Can be processed into organic fertilizer base material; also serves as bedding litter for livestock and poultry farms to keep sheds dry and reduce bacteria.
Commercial Export Trade
Meets international biomass fuel standards, widely exported to European, Southeast Asian and South American markets for residential heating and commercial energy supply.
RICHI Crafted, Fully Trusted.
Core Advantages of RICHI
Reliable, hassle-free and reassuring — these are the hallmarks of RICHI.
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
Do I need to add chemical binders? Will finished pellets break easily?
No chemical adhesives are required at all. Under high-pressure extrusion, friction heat activates natural lignin inside rice husks for bonding. After full hardening in the counter-flow cooler, pellets achieve qualified PDI durability index, resistant to breakage during stacking and long-distance transportation, meeting standards for boiler combustion and export trade.
What is the optimal moisture content of raw rice husks? What are the negative effects of too high or too low moisture?
The ideal moisture range is 12%–20%.
- Over-dried material causes sharp current surge, severe die abrasion and higher power consumption. We can match rotary drum dryers to automatically adjust moisture for stable production even with fluctuating raw material humidity.
- Excess moisture leads to loose pellets, low strength and mildew risk;
How often do I replace ring dies and rollers? Can spare parts be delivered overseas?
Under continuous pure rice husk production, wear-resistant ring dies last 800–1200 working hours. RICHI has a global spare parts warehouse system. Vulnerable parts such as ring dies, rollers and cutters can be shipped internationally to more than 140 countries with lifelong spare parts supply guarantee, plus remote video replacement guidance.
Besides being fuel, what other sales channels do rice husk pellets have?
Three main profitable applications:
- Export trade: high value-added clean biomass fuel exported globally.
- Industrial fuel: biomass power plants, factory boilers, cement kiln co-processing;
- Agricultural application: organic fertilizer raw material, bedding litter for livestock and poultry farms;
