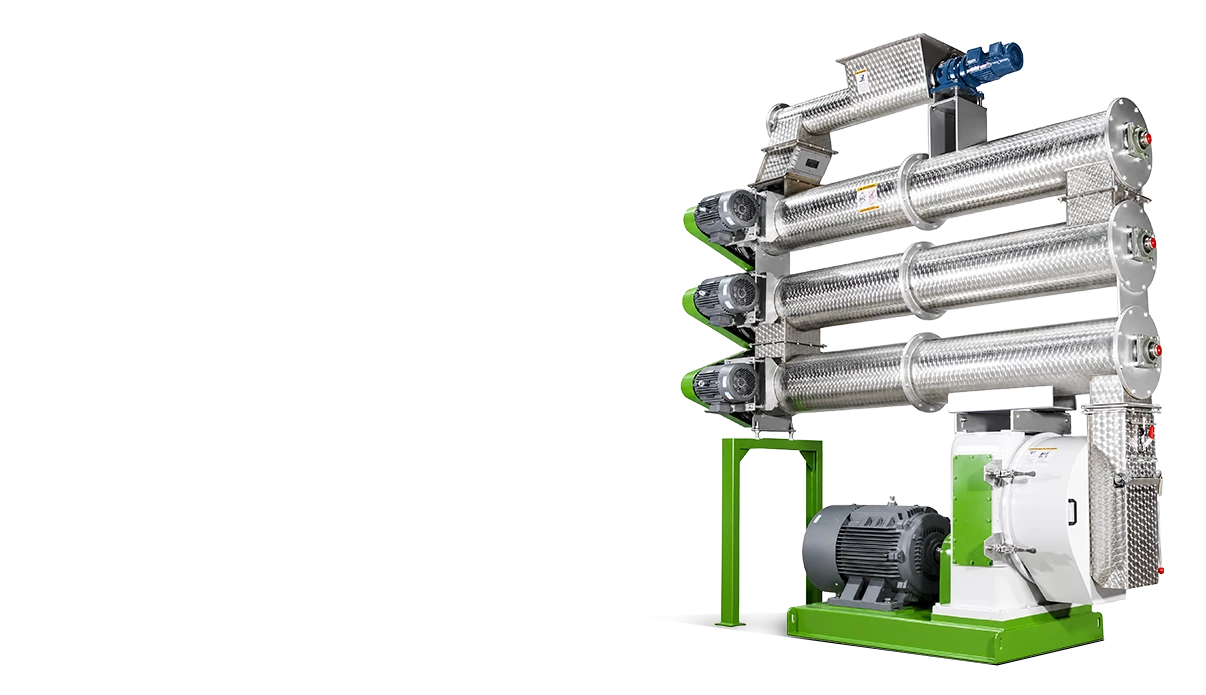

Shrimp Feed Pellet Mill
The Shrimp Feed Pellet Mill produces highly water-resistant sinking shrimp feed. Fitted with a dedicated low-speed, high-torque motor, it makes small-size pellets with superior gelatinization and maturation levels.
According to different customer needs, RICHI designs different equipment models.

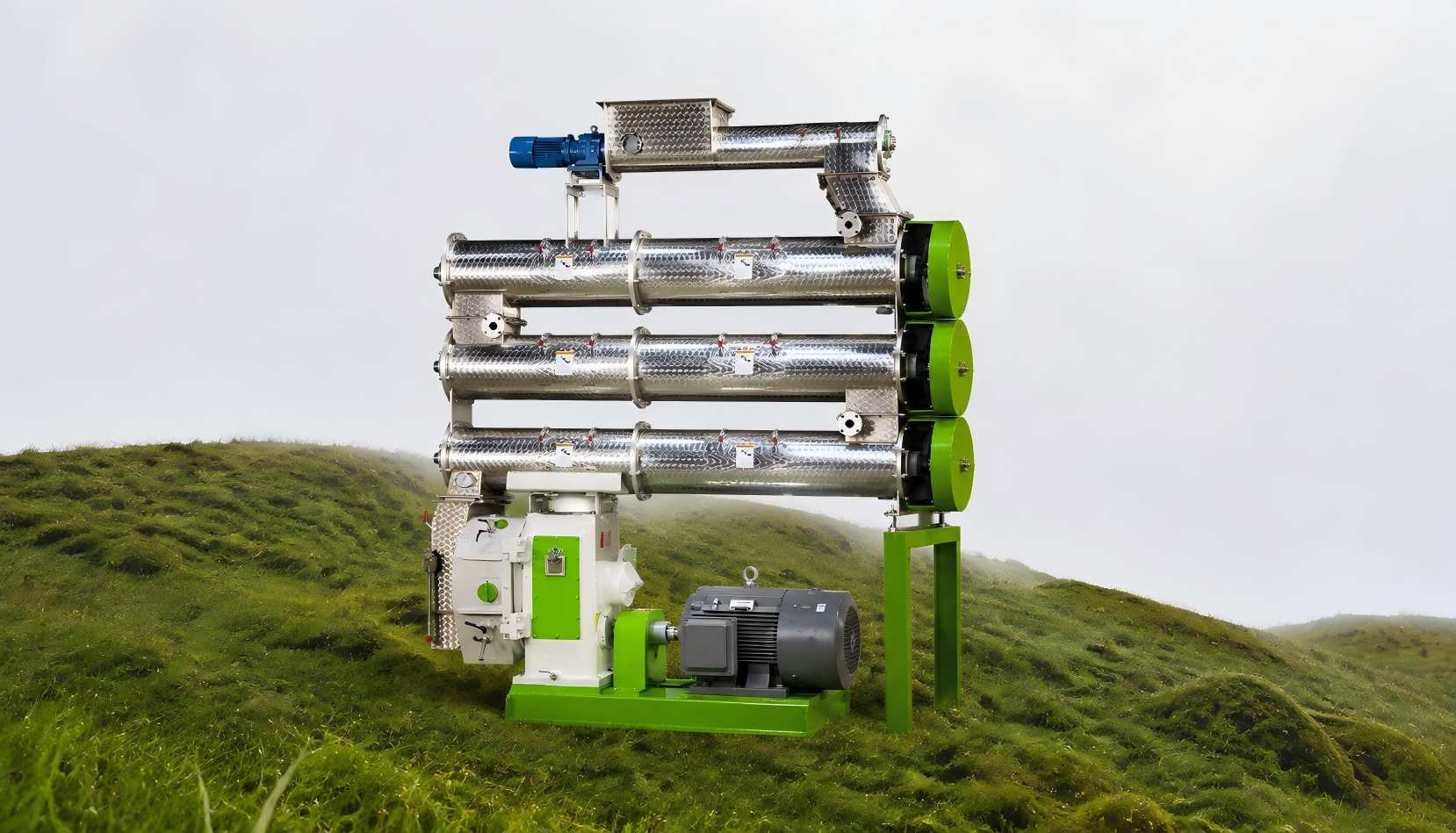

Shrimp Feed Pellet Machine
The finished pellets produced by the shrimp feed pellet mill meet international commercial standards for aquatic feed.
Finished Shrimp feed pellets
Pellets produced by the shrimp feed pellet machine feature the following advantages:
- Stable granules with high durability (low PDI) and minimal dust; they do not disintegrate after prolonged immersion in water, thereby preventing water pollution;
- The starch content is fully gelatinized, facilitating digestion and absorption by shrimp, increasing feed intake, and reducing feed waste.
Finished Pellet Diameter:1.0-3.0 mm
According to different customer needs, RICHI designs different equipment models.
Equipment Structure of Shrimp Feed Making Machine

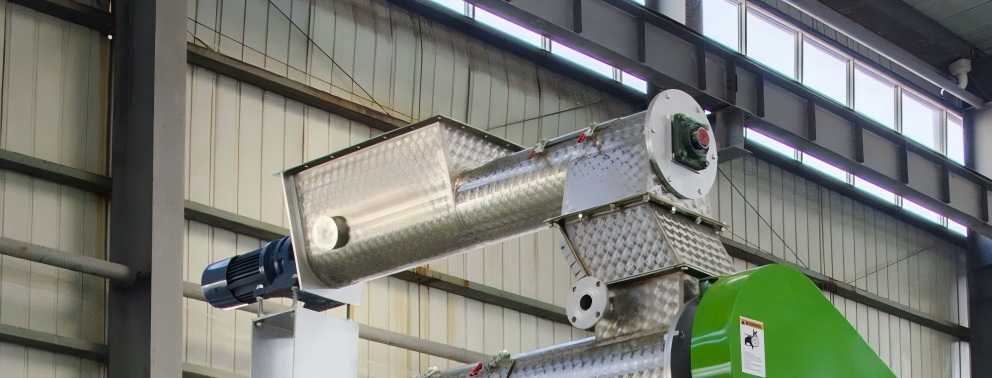

Variable Frequency Feeding System
Equipped with a widened polished stainless steel hopper for anti-sticking and smooth feeding. The independent variable-frequency screw enables stepless speed adjustment to match different formulas and production capacities. A top magnetic iron remover effectively eliminates metal impurities and protects ring dies and rollers.

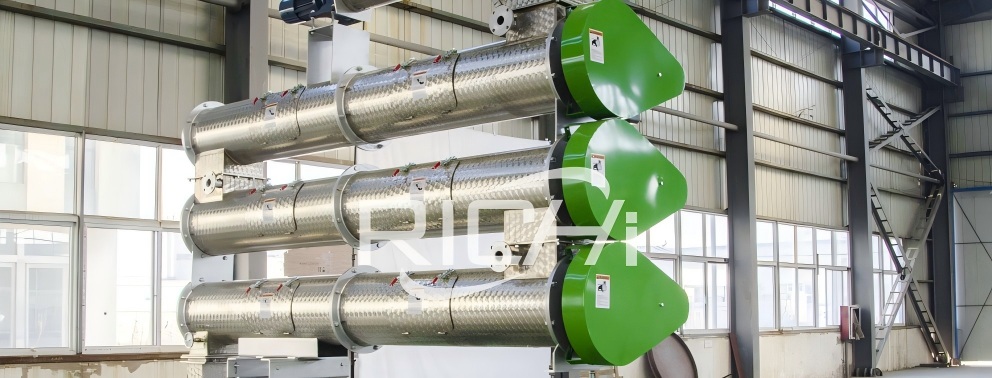

Multi-layer Conditioning System
Equipped with a standard three-stage conditioner, it ensures the finished product meets required cooking standards. The barrel and paddles are constructed from 304 stainless steel; the staggered paddle arrangement extends material retention time, allowing for precise temperature control while ensuring thorough gelatinization and sterilization of raw materials—making it suitable for processing high-protein, high-fat shrimp feed formulations.

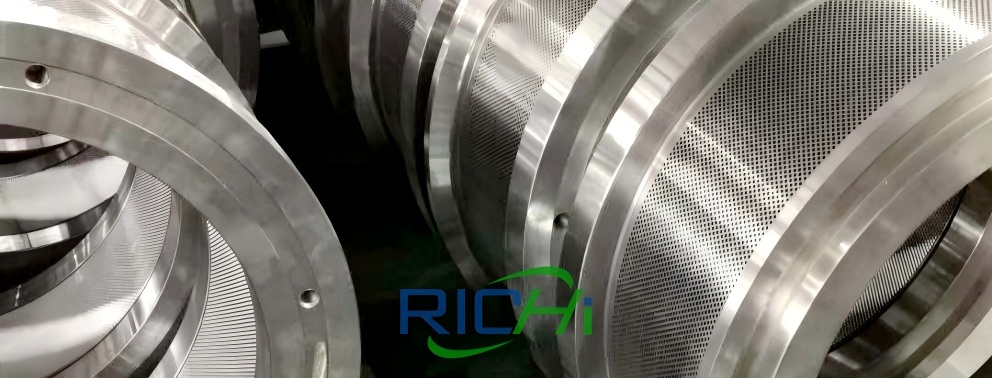

Ring Die Pelleting Main Unit
Adopts 42CrMo carburized alloy ring die and aquaculture-specific optimized rollers, perfectly matching the compression ratio for fine shrimp pellets. The quick-clamp ring die structure enables fast die replacement. High-strength alloy gear transmission ensures low noise and stable operation. Thin cutting blades deliver clean pellet cuts with minimal fines.

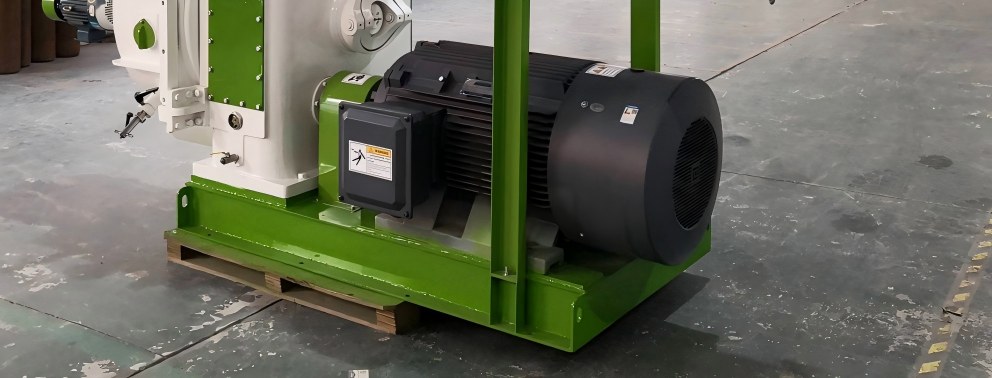

Driving & Automatic Control Unit
Equipped with a Siemens main motor—with optional 6-pole or 8-pole low-speed, high-torque configurations—it effortlessly handles high compression ratios. Features such as PLC control, automatic lubrication, and fault self-diagnosis enhance operational safety; the unit can also be integrated into a complete feed production line for coordinated control.

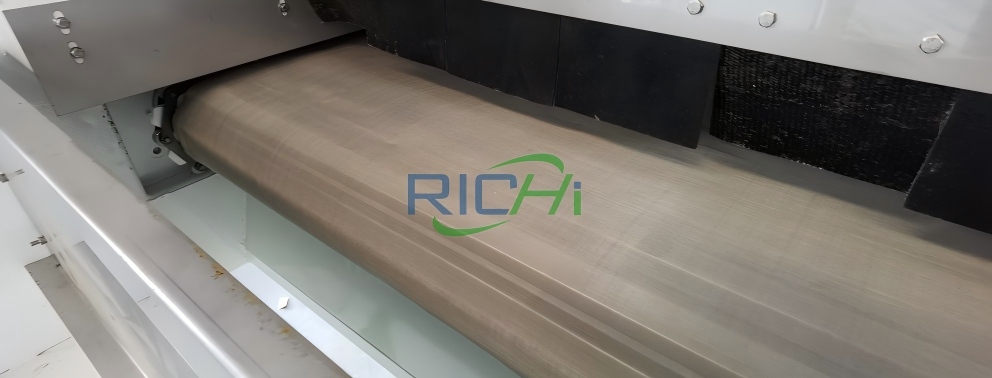

Optional Auxiliary Equipment
RICHI also offers auxiliary equipment—such as ultra-fine pulverizers, granulators, and oil/astaxanthin spraying and coating systems—which you can select and configure according to your production line requirements.
According to different customer needs, RICHI designs different equipment models.
Shrimp Feed Pellet Mill
The SZLH series is RICHI’s flagship ring die pellet mill line, fully meeting production needs from small farms to large feed factories.
Various Capacities of RICHI Feed Pellet Mill for Sale
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main motor power ( kW ) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder motor power ( kW ) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner power ( kW ) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter（mm） | 2~12 | |||||||
| Capacity（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
On-site Running Display of Shrimp Feed Pellet Machine
RICHI features spacious factory premises, a tidy office environment and complete production lines.
Why choose RICHI？
Great enterprise, quality products, tangible strength.
RICHI Shrimp Feed Production Line
RICHI’s equipment is capable of producing high-quality shrimp feed pellet.
Core Advantages of Shrimp Feed Making Machine
The shrimp feed pellet machine possess a range of core advantages for production applications.
RICHI Crafted, Fully Trusted.
Success Stories
RICHI has accumulated numerous successful project cases through our dedicated full-service support.

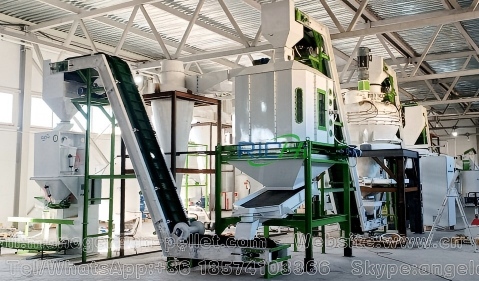

Ecuador
5 t/h Shrimp Feed Turnkey Project
- Designed for local substitution of imported feed, serving large-scale coastal Litopenaeus vannamei farms
- Formulation compatible with local fermented banana stem waste, fish meal and soybean meal to cut costs via waste recycling
- Equipped with a nutrient coating system for online addition of astaxanthin, probiotics and other functional ingredients
- Produces high-water-stability sinking shrimp feed to reduce nutrient leaching from leftover feed and protect aquaculture water
- Delivered as a full turnkey solution with an annual output of 30,000 tons

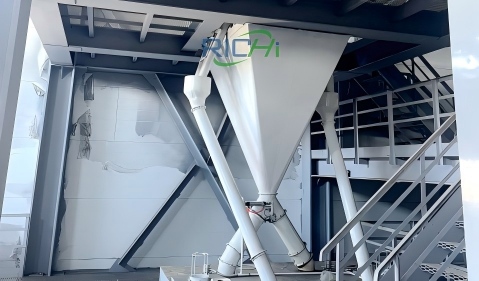

India
2×10 t/h Integrated Fish & Shrimp Feed Project
- Dual lines equipped with RICHI SZLH shrimp-feed-specific pellet mills for fast formula switching
- Dual-purpose production for sinking shrimp feed and regular fish feed to improve line utilization
- Built for coastal clustered shrimp farming industrial parks, covering in-house farming and external distribution
- Central automatic control with consistent conditioning parameters to guarantee stable pellet water resistance across batches
- Ideal for large aquafeed manufacturers conducting flexible multi-product production

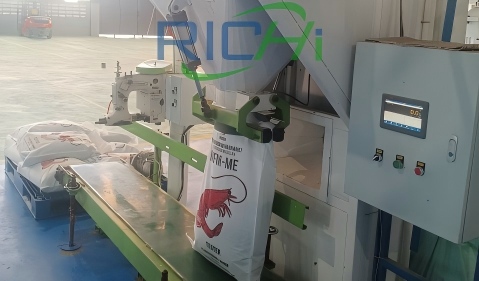

Indonesia
6 t/h Fish Feed + 5 t/h Shrimp Feed Combined Plant
- Independent shrimp pelleting unit fitted with triple-layer conditioner and post-curing system for export-grade high-stability sinking shrimp feed
- Anti-corrosion and sealed design adapted to Southeast Asia’s high-temperature and high-humidity climate for stable long-run operation
- Pellet sizes cover the whole growth cycle from post-larvae to adult shrimp, compliant with export standards for markets including Vietnam and Thailand
- Strong adaptability to high-protein, high-oil shrimp feed formulas with low die sticking and low fines rate
- Separate control for fish and shrimp feed lines to maintain independent quality compliance and simplify export inspection
Supporting Production Line
The above covers only fundamental shrimp feed pelleting procedures. Please reach out to us for tailored solutions.
Raw Material Receiving, Cleaning & Water‑drop Hammer Milling
Raw materials go through impurity and metal removal, then are ground to required fineness by water‑drop hammer mill for accurate batching in downstream process.
Precision Batching & Double Mixing
Automatic formula‑based weighing and dual dry‑liquid mixing ensure uniform nutrition distribution across batches.
Conditioning→Pelletizing→Post‑Curing
Materials are fully gelatinized via multi‑layer steam conditioning, then compressed into sinking pellets by dedicated shrimp‑feed ring‑die pellet mill. Fresh pellets are further treated in post‑curing equipment under constant temperature and humidity to boost water resistance and reduce water disintegration.
Drying & Cooling
Stabilize pellet moisture content and hardness to prevent mildew, cracking and deformation in storage.

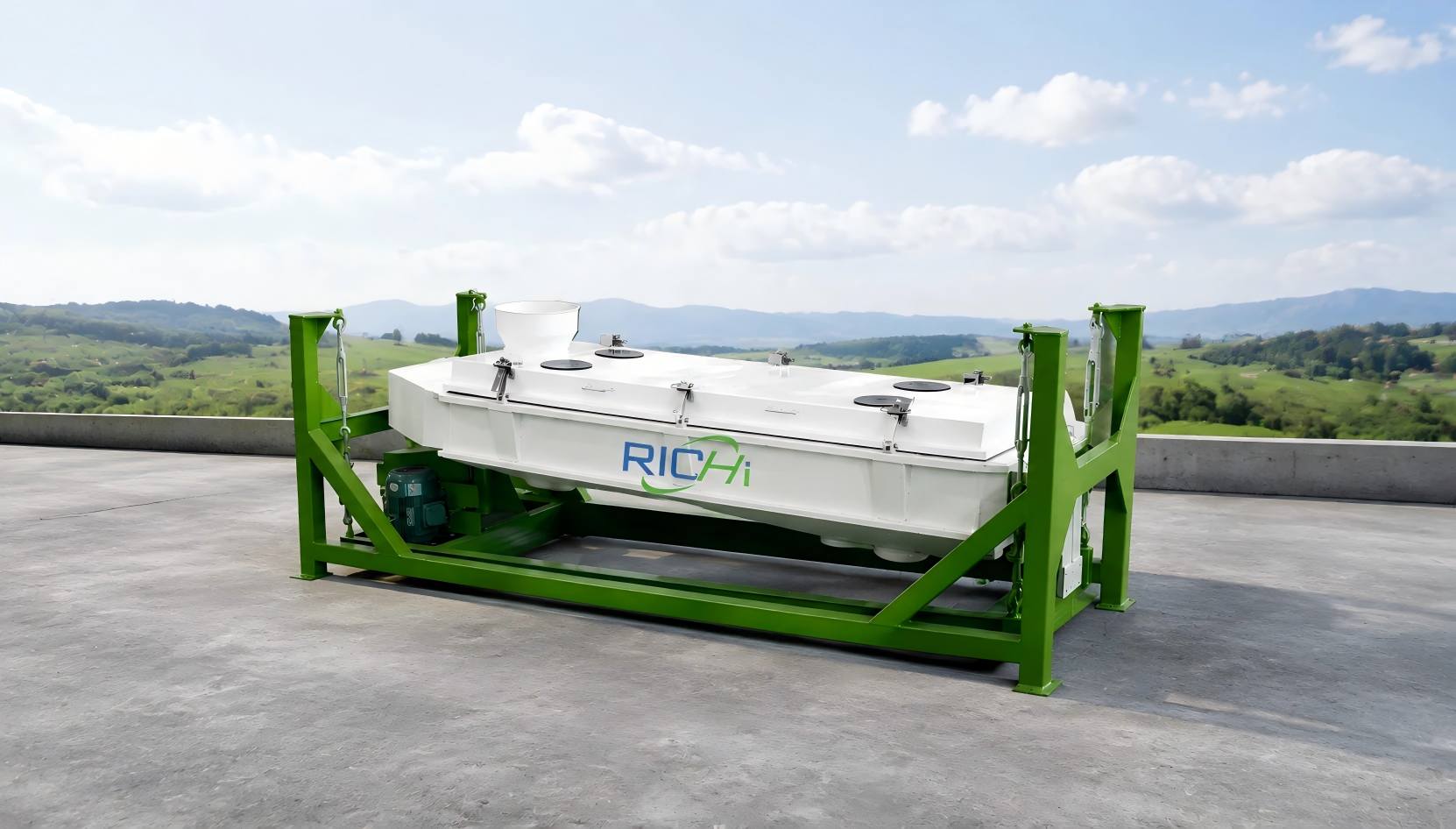

Screening & Fines Recycling
Qualified pellets are separated; broken pellets and fines are recycled for re‑pelleting to raise finished product yield.
Automatic Packaging
Finished pellets are weighed, bagged and put into warehouse.
RICHI equipment delivers reliable performance anywhere.
Application Scenarios of Fuel Making Machine
Commercial Specialized Shrimp Feed Factory
Suitable for professional aquafeed factories focusing on sinking feed for white shrimp, black tiger shrimp and freshwater prawns. It produces high water-stability standard pellets for domestic sales and export, meeting large-scale commercial aquaculture demands.

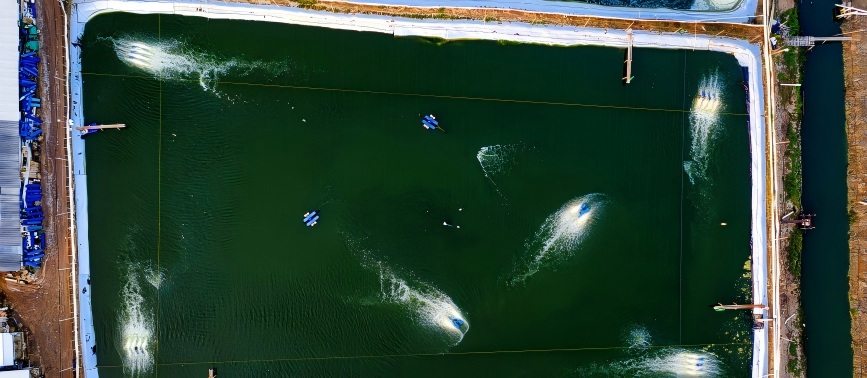

Integrated Multi-purpose Aquafeed Plant
Ideal for comprehensive feed manufacturers that need flexible switching between shrimp feed and fish feed. One set of equipment supports multi-formula production, improving line utilization and reducing factory investment costs.

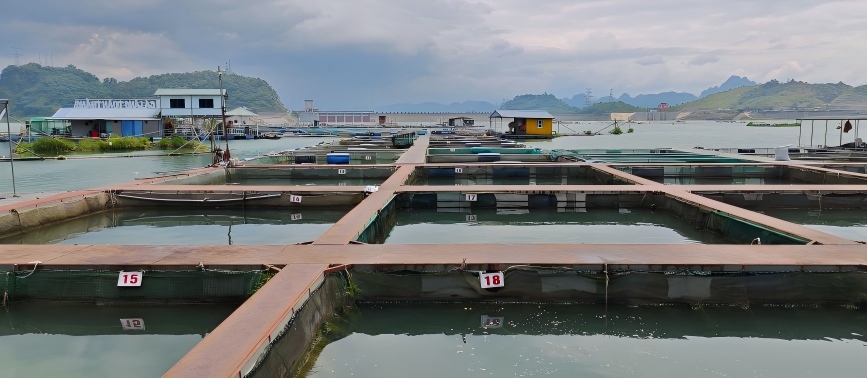

Large-scale Aquaculture Self-use Workshop
Designed for large shrimp farming groups and industrial parks to build self-matching feed workshops. On-site production of customized shrimp feed reduces outsourcing costs and strictly controls feed quality and raw material safety.
RICHI Crafted, Fully Trusted.
Core Advantages of RICHI
Reliable, hassle-free and reassuring — these are the hallmarks of RICHI.
Your challenges, our solutions.
FAQs
Should you have any questions, RICHI will provide you with professional answers.
What pellet sizes can be produced? Does the finished feed meet export standards?
The machine produces micro-pellets from 1 mm to 3 mm, covering the whole growth cycle from shrimp larvae to adult shrimp. With triple-layer steam conditioning and optional post-curing technology, the pellets achieve full starch gelatinization, excellent water durability and low fines rate, fully meeting international commercial and export aquafeed standards.
Can this machine handle high-protein and high-oil shrimp formulas without die sticking?
Yes. Equipped with a variable-frequency anti-blocking feeding system and 304 stainless steel multi-stage conditioner, the machine fully matures high-protein and high-fat materials. The shrimp-feed-specific ring die and roller compression ratio effectively reduce die sticking. The pellet forming rate can reach over 98% with minimal fines.
What are the wearing parts? Is maintenance convenient?
The main wearing parts are ring dies and rollers. The quick-release clamp structure enables fast die replacement and easy cleaning, greatly reducing downtime. RICHI provides global after-sales support, including remote guidance, operation training and overseas on-site commissioning.
Can heat-sensitive additives such as astaxanthin and probiotics be added before pelleting?
No. High-temperature conditioning will destroy active ingredients. We support post-pellet vacuum coating system. Heat-sensitive nutrients including fish oil, probiotics and astaxanthin are sprayed after cooling to maintain maximum activity and produce high-value functional shrimp feed.
